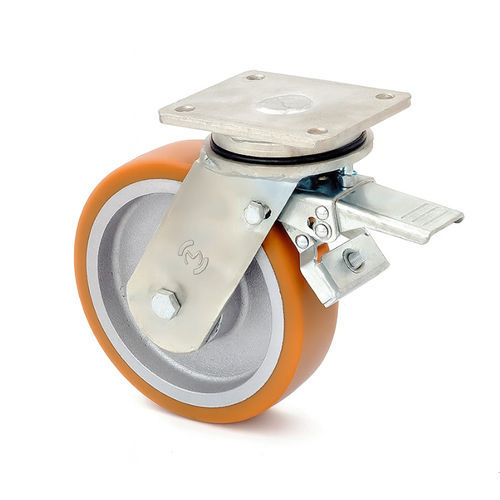

Wheel with solid tire LPS/4/200/KDS – 1500 kgcastplateelastic
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- cast
- Applications
- plate
- Other characteristics
- non-marking, elastic
- Load capacity
1,500 kg
(3,307 lb)- Diameter
200 mm
(7.87 in)- Tread width
80 mm
(3.15 in)
Description
"Swivel Wheel Set with Brake LPS/4/200/KDS – Cast Iron–Polyurethane Wheel – 1500 kg
Technical parameters:
· Safety factor 1.3, maximum load when using 4 wheels: 4500 kg
· Bearings: ball bearings
· Plate size: 175x140 mm
· Mounting hole spacing: 140x105 mm
· Total height: 265 mm
Wheel: durable bond of high-quality cast polyurethane with cast iron hub using special adhesives. Hardness 92° ShA, elastic, floor-protecting and non-marking. Resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance.
Housing: arms welded from 8 mm thick zinc-coated steel plate, 15 mm thick base plate, swivel head with double bearings (51113 and 30205). Bolted wheel axle.
Mounting type: top plate.
"
