Wheel with solid tire LVS/4/250/KDS-V – 900 kgPAplatereinforced
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- PA
- Applications
- plate
- Other characteristics
- non-marking, elastic, reinforced
- Load capacity
900 kg
(1,984 lb)- Diameter
250 mm
(9.84 in)- Tread width
60 mm
(2.36 in)
Description

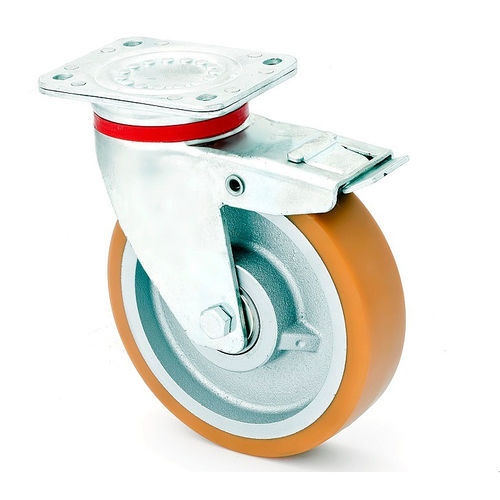

"Swivel Wheel Set with Brake LVS/PA/250/KDS-V – Cast Iron–Polyurethane Wheel – 900 kg (Heavy Duty)
Technical parameters:
· Safety factor 1.3, maximum load when using 4 wheels: 2700 kg (note: side forces)
· Bearings: ball bearings
· Plate size: 135x110 mm
· Mounting hole spacing: 105x80 mm
· Total height: 295 mm
Wheel: “MARBATHANE”® polyurethane tread, non-marking, high ride comfort, hardness 92° ShA, elastic, non-damaging to floors, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance.
Housing: stamped from thick zinc-coated steel plate, swivel head with reinforced construction and double ball bearings, specially sealed. Bolted wheel axle.
Mounting type: top plate.
"
