Wheel with solid tire BVS/4/250/K – 900 kg
cast ironplateelastic

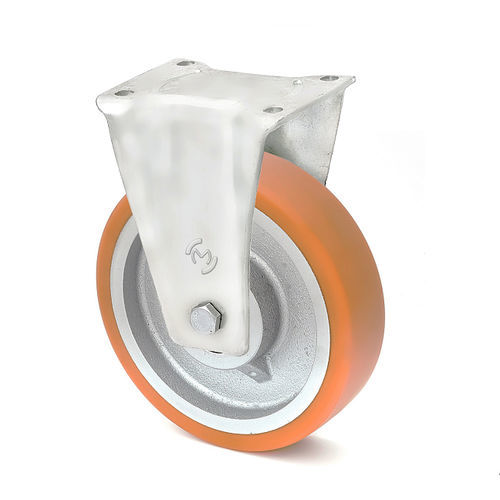

Wheel with solid tire - BVS/4/250/K – 900 kg - MARBA - cast iron / plate / elastic
Wheel with solid tire - BVS/4/250/K – 900 kg - MARBA - cast iron / plate / elastic
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
cast iron
Applications
plate
Other characteristics
elastic
Load capacity

900 kg
(1,984 lb)

Diameter

250 mm
(9.84 in)

Tread width

50 mm
(1.97 in)

Description

"Fixed Wheel Set BVS/PA/250/K – Cast Iron–Polyurethane Wheel – 900 kg (Heavy Duty) Technical parameters: · Safety factor 1.3, maximum load when using 4 wheels: 2700 kg · Bearings: ball bearings · Plate size: 135x110 mm · Mounting hole spacing: 105x80 mm · Total height: 297 mm Wheel: “MARBATHANE”® polyurethane tread, non-marking, high ride comfort, hardness 92° ShA, elastic, non-damaging to floors, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance. Housing: stamped from thick zinc-coated steel plate. Bolted wheel axle. Mounting type: top plate. "
