Wheel with solid tire BVS/4/200/K – 1000 kg
cast ironplateelastic

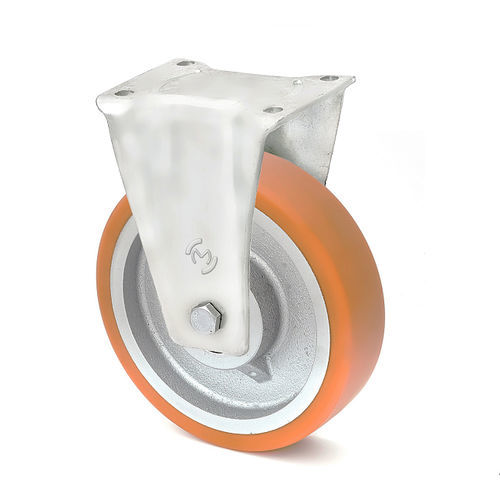

Wheel with solid tire - BVS/4/200/K – 1000 kg - MARBA - cast iron / plate / elastic
Wheel with solid tire - BVS/4/200/K – 1000 kg - MARBA - cast iron / plate / elastic
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
cast iron
Applications
plate
Other characteristics
non-marking, elastic
Load capacity

1,000 kg
(2,205 lb)

Diameter

200 mm
(7.87 in)

Tread width

50 mm
(1.97 in)

Description

"Fixed Wheel Set BVS/4/200/K – Cast Iron–Polyurethane Wheel – 1000 kg (Heavy Duty) Technical parameters: · Safety factor 1.3, maximum load when using 4 wheels: 3000 kg · Bearings: ball bearings · Plate size: 135x110 mm · Mounting hole spacing: 105x80 mm · Total height: 245 mm Wheel: “MARBATHANE”® polyurethane tread, non-marking, high ride comfort, hardness 92° ShA, elastic, non-damaging to floors, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance. Housing: stamped from thick zinc-coated steel plate. Bolted wheel axle. Mounting type: top plate. "
