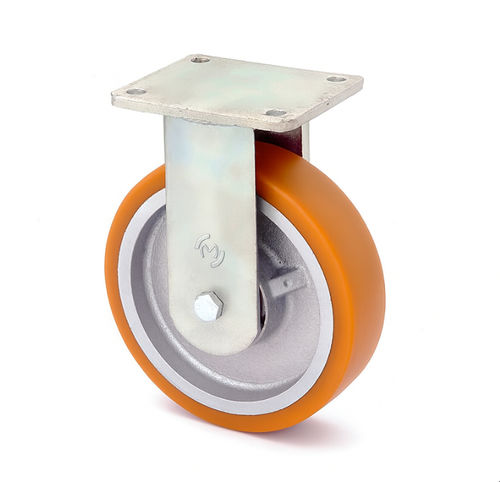

Wheel with solid tire BPS/4/200/K – 1500 kg
castplatereinforced

Wheel with solid tire - BPS/4/200/K – 1500 kg - MARBA - cast / plate / reinforced
Wheel with solid tire - BPS/4/200/K – 1500 kg - MARBA - cast / plate / reinforced
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
cast
Applications
plate
Other characteristics
non-marking, elastic, reinforced
Load capacity

1,500 kg
(3,307 lb)

Diameter

200 mm
(7.87 in)

Tread width

80 mm
(3.15 in)

Description

"Fixed Wheel Set BPS/4/200/K – Cast Iron–Polyurethane Wheel – 1500 kg Technical parameters: · Safety factor 1.3, maximum load when using 4 wheels: 4500 kg · Bearings: ball bearings · Plate size: 175x140 mm · Mounting hole spacing: 140x105 mm · Total height: 265 mm Wheel: durable bond of high-quality cast polyurethane with cast iron hub using special adhesives. Hardness 92° ShA, elastic, floor-protecting and non-marking. Resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance. Housing: fork welded from 8 mm thick zinc-coated steel plate, 12 mm thick base. Reinforced arms with pressed stiffening. Mounting type: top plate. "
