Wheel with solid tire LVS/4/125/KDS-N– 600 kg
cast ironplatereinforced

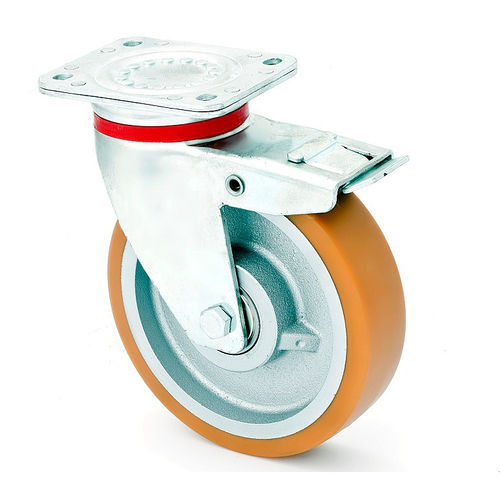

Wheel with solid tire - LVS/4/125/KDS-N– 600 kg - MARBA - cast iron / plate / reinforced
Wheel with solid tire - LVS/4/125/KDS-N– 600 kg - MARBA - cast iron / plate / reinforced
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
cast iron
Applications
plate
Other characteristics
non-marking, elastic, reinforced
Load capacity

600 kg
(1,323 lb)

Diameter

125 mm
(4.92 in)

Tread width

50 mm
(1.97 in)

Description

"Swivel Wheel Set with Brake LVS/4/125/KDS-N – Cast Iron–Polyurethane Wheel – 600 kg (Heavy Duty) Technical parameters: · Safety factor 1.3, maximum load when using 4 wheels: 1800 kg · Bearings: ball bearings · Plate size: 135x110 mm · Mounting hole spacing: 105x80 mm · Total height: 178 mm Wheel: “MARBATHANE”® polyurethane tread, non-marking, high ride comfort, hardness 92° ShA, elastic, non-damaging to floors, resistant to abrasion, cuts, and tearing. Quiet running with low rolling resistance. Housing: stamped from thick zinc-coated steel plate, swivel head with reinforced construction and double ball bearings, specially sealed. Bolted wheel axle. Mounting type: top plate. "
