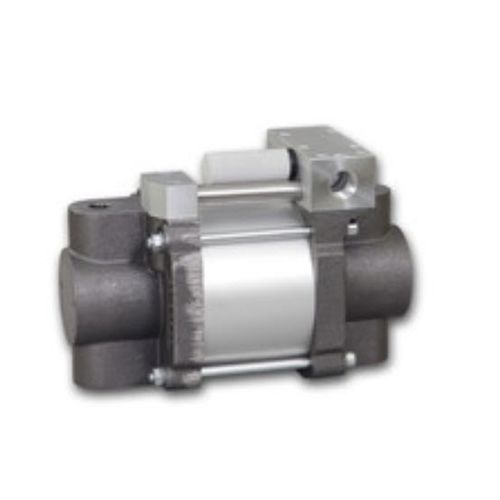

Piston pump S150D

for gasair-drivenstationary

Maximator pumps of the S...D series are available in double-acting design with one air drive piston. Features high pressure pumps S...D series double acting single air drive head S...D pumps are double acting, single air drive head type. They are characterized by the same features as the S series, but: Pumps come standard with side inlet only They have less pulsations and deliver approx. 50% more flow than the single acting S pumps. The unregulated pilot port on all S...D pumps not only provides better pressure control but is also the ideal place to install control instrumentation because of its small size, BSP 1/8”. Options for S(D) series Special inlet and outlet ports (i. e. NPT): S35(D) – NPT Air control unit for S(D) series with filter pressure regulator, control pressure gauge and shut-off valve: Order code: S35(D) with C1 To protect the pump against excessive outlet pressures, an air safety valve can be fitted to the air control unit: Order code: S35(D) with C1/SVair (The outlet pressure has to be indicated.)
