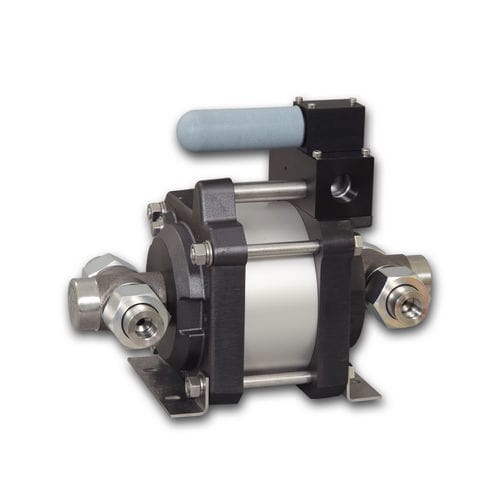

Piston pump G10D

waterair-drivenstationary

Maximator pumps of the G series are available in double-acting design with one air drive piston. Features high pressure pumps G...D series The unregulated pilot port on all G pumps not only provides better pressure control but can be used for switching the pump on and off via solenoid valves with small nominal size. double acting single air drive head G...D pumps are double acting, single air drive head. They are characterized by the same features as the G pumps single acting, single air drive head types, but they have less pulsations and deliver approx. 50 % more flow. G...D pumps are available with polyurethane seals, UHMWPE seals with FKM O-ring for water use are available as option. Models G10D – G35D come standard with bottom inlet, side inlet is available as option. Models G60D(S) – G150D(S) are only available with side inlet. Options for G...D series Seal material for oil use (standard pump): Order code: G35D – (L) Seal material for water use: Order code: G35D – VE Special seal material to handle special fluids: Order code: See fluid compatibility guide Side inlet (G60D – G150D come standard with side inlet) Order code: G35(D)VE – S Special inlet and outlet ports (i. e. NPT): G35D – NPT Air control unit for G...D series with filter pressure regulator, control pressure gauge and shut-off valve: Order code: G35D with C2 To protect the pump against excessive outlet pressures, an air safety valve can be fitted to the air control unit: Order code: G35D with C2/SVair (The outlet pressure has to be indicated.)
