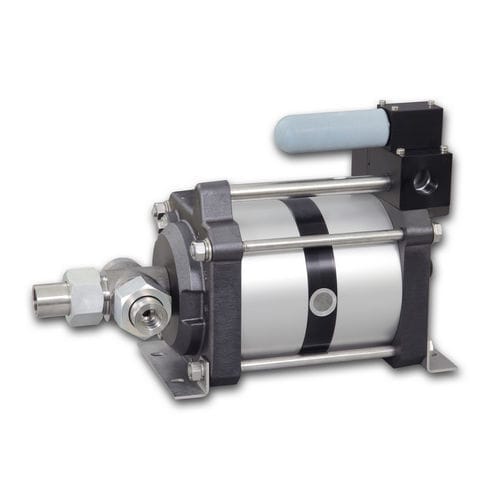

Piston pump G25-2

waterair-drivenstationary

Maximator pumps of the G...-2 series are available in single-acting design with two air drive pistons. Features high pressure pumps G...-2 series The unregulated pilot port on all G pumps not only provides better pressure control but can be used for switching the pump on and off via solenoid valves with small nominal size. single acting double air drive head G...-2 pumps are single acting double air drive head pumps. Compared with the single acting single air drive head G pumps they reach double pressure at the same air drive pressure. G...-2 pumps are available with polyurethane seals, UHMWPE seals with FKM O-rings for water use are available as option. They come standard with bottom inlet, side inlet is available as option. Options for G...-2 series Seal material for oil use (standard pump): Order code: G35-2 – (L) Seal material for water use: (not available for G500-2) Order code: G35-2 – (L)VE Special seal material to handle special fluids: Order code: See fluid compatibility guide Side inlet (G500-2 come standard with side inlet) Order code: G35-2(L) – S Special inlet and outlet ports (i. e. NPT): G35-2 – NPT Air control unit for G series with filter pressure regulator, control pressure gauge and shut-off valve: Order code: G35-2 with C2 To protect the pump against excessive outlet pressures, an air safety valve can be fitted to the air control unit: Order code: G35-2 with C1/SVair (The outlet pressure has to be indicated.)
