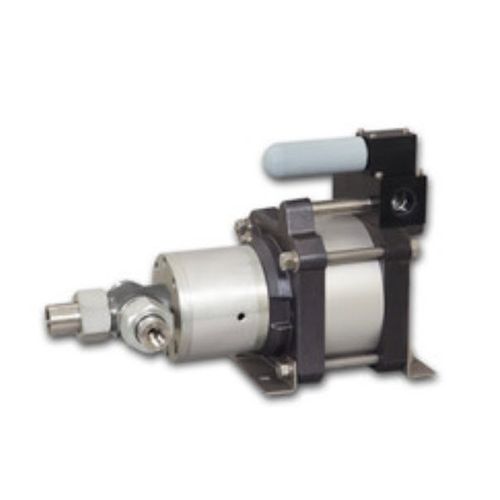

Water pump GSF25
air-drivenpistonstationary

water pump
water pump
Add to favorites
Compare this product


Characteristics

Fluid
water
Operation
air-driven
Technology
piston
Mobility
stationary
Domain
industrial, chemical
Applications
high-pressure, control
Material
stainless steel, PTFE
Other characteristics
standard, rugged, single-acting, with filter
Flow

7.24 l/min
(1.91261 us gal/min)

Pressure

Min.: 0 bar
(0 psi)

Max.: 280 bar
(4,061.057 psi)

Fluid temperature

60 °C
(140 °F)

Length

400 cm
(157 in)

Width

272 cm
(107.09 in)

Height

181 cm
(71.26 in)

Weight

19 kg
(41.89 lb)

Description

Air control units with filter pressure regulator, control pressure gauge and shut off valve: GSF25(L) with C2 To protect the pump against excessive outlet pressures or to limit the outlet pressure, a safety valve can be fitted to the air control unit in the air drive line. GSF25(L) with C2/SV-air (The required outlet pressure has to be indicated.)
