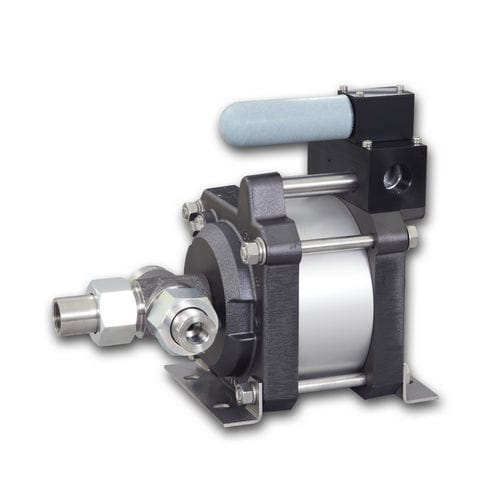

Piston pump G15

waterair-drivenstationary

Maximator pumps of the G series are available in single- or double-acting design with one or two air drive pistons. Features high pressure pumps G series The unregulated pilot port on all G pumps not only provides better pressure control but can be used for switching the pump on and off via solenoid valves with small nominal size. single acting single air drive head G pumps have stainless steel bodies and plungers. All G pumps have polyurethan seals. For strictly water service, UHMWPE seal option is recommended. This seal is an option because the standard polyurethane seal provides significantly better service life in non-straight water applications. G pumps come standard with bottom inlet. Side inlet is available as option. Model G500(S) is only available with side inlet. Options for G series Seal material for oil use (standard pump): Order code: G35 – (L) Seal material for water use: (not available for G500 and G500-2) Order code: G35 – (L)VE / G35D – VE Special seal material to handle special fluids: Order code: See fluid compatibility guide Side inlet (G500, G500-2 and G60 – G150 come standard with side inlet) Order code: G35(L) – S / G35(D)VE – S Special inlet and outlet ports (i. e. NPT): G35 – NPT Air control unit for G series with filter pressure regulator, control pressure gauge and shut-off valve: Order code: G35 with C2 To protect the pump against excessive outlet pressures, an air safety valve can be fitted to the air control unit: Order code: G35 with C2/SVair (The outlet pressure has to be indicated.)
