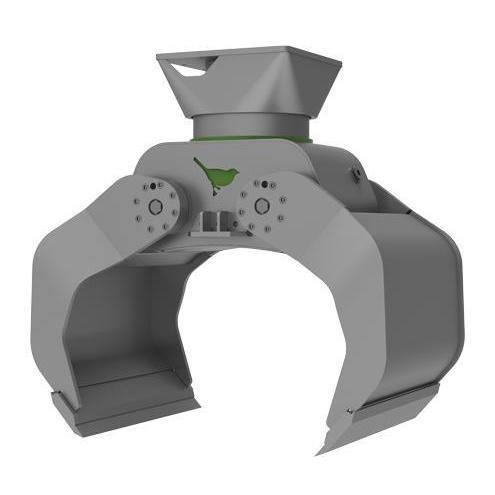

Stone sorting grapple MDS 6.0

for pipeswaste collectionfor concrete

Overview
The Sorting Grapple (Standard) is engineered for material sorting, recycling, demolition and stone handling. Its A-synchronous gripping technology and fixed, reinforced jaws deliver a reliable grip for site clearance, waste management and concrete element handling. Constructed from durable steel and backed by a 3-year warranty, the MDS 6.0 Standard is suited to professionals seeking a simple, dependable attachment compatible with 5–9 t carriers.

Tool functions

• Waste handling, loading & sorting
• Rock handling & stone placement
• Construction & concrete element handling
• Building retaining walls
• Concrete and plastic pipe handling

Characteristics / Technical specifications

• Model series: MDS 6.0
• Machine operating weight: 5–9 t
• Volume: 215 l / 0.28 cy
• Max opening: 1533 mm / 60.35 in
• Width (A): 650 mm / 25.59 in
• Height: 550 mm / 21.65 in (height excludes connection plate)
• Closing force: 29 kN / 6519 lbf
• Arms weight: 150 kg / 331 lbs
• Total grapple weight: 360 kg / 794 lbs (total weight excludes connection plate)
