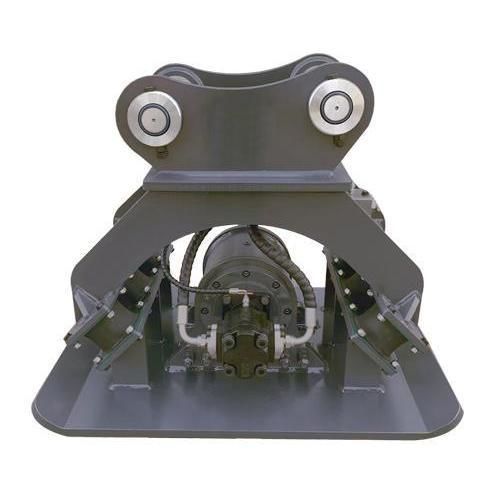

Forward travel vibratory plate MHG series

for excavatorsremote-controlledcompacting

Overview
The MHG series excavator-mounted vibratory plate compactor provides efficient soil compaction for a variety of civil and earthworks operations. Engineered for attachment to an excavator arm, it enables remote compaction in confined areas, near foundations, around obstacles and on slopes where conventional rollers cannot operate.

Operation and safety
Mounted on the excavator arm, the unit is operated remotely from the cab, increasing operator safety and access. Key safety elements include overload protection and optimized force distribution to reduce the risk of equipment strain during heavy-duty use.

Key features

• Hydraulic drive for direct connection to excavator hydraulic system
• Adjustable base sizes to suit different soil conditions and trench widths
• Rotating plate for precise positioning and alignment
• Overload protection to safeguard hydraulic components
• Improved force distribution for uniform compaction
• Low noise operation for reduced site disturbance
• Suitable for trench backfilling, ground leveling, embankment construction and pole installation/removal
• 1-year warranty

Applications

• Trench backfilling and pipeline trenches
• Ground and surface leveling
• Embankment and slope compaction
• Installation and removal of poles and posts
• Compaction near foundations and obstacles

Models and detailed specifications
MHG-02/04

• Machine operating weight: 4–12 tonnes
• Impact force: 4 tonnes
• Max vibration: 2000 rpm
• Unit weight: 300 kg
• Working pressure: 110–140 bar
• Oil flow: 45–75 l/min
• Plate dimension (L×W×T): 900×500×25 mm
• Total height: 730 mm
• Total width: 550 mm

MHG-06

• Machine operating weight: 4–12 tonnes
• Impact force: 6.5 tonnes
• Max vibration: 2000 rpm
• Unit weight: 600 kg
• Working pressure: 150–170 bar
• Oil flow: 85–105 l/min
• Plate dimension (L×W×T): 1160×700×28 mm
• Total height: 730 mm
• Total width: 550 mm

MHG-08

• Machine operating weight: 18–27 tonnes
• Impact force: 15 tonnes
• Max vibration: 2000 rpm
• Unit weight: 850 kg
• Working pressure: 160–180 bar
• Oil flow: 120–170 l/min
• Plate dimension (L×W×T): 1350×900×30 mm
• Total height: 900 mm
• Total width: 700 mm

Technical characteristics

• Series: MHG series
• Attachment type: Excavator-mounted vibratory plate compactor
• Drive: Hydraulic
• Adjustability: Multiple base sizes and rotation capability for precise positioning
• Safety features: Overload protection and improved force distribution
• Acoustic: Designed for low noise levels
• Typical applications: Trench backfilling, ground leveling, embankment construction, pole installation/removal
• Warranty: 1 year
