Forestry mulcher

Product overview

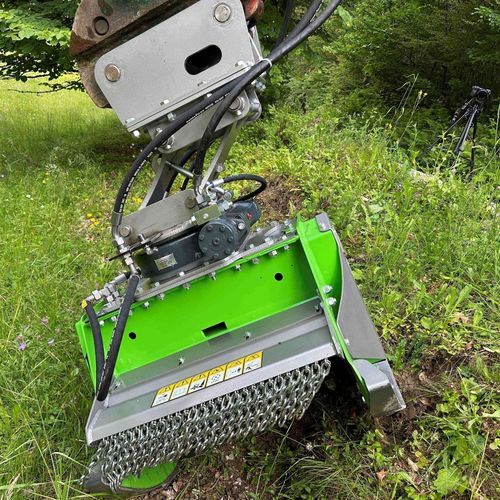

The Modularis professional mulcher for excavators is an attachment designed for excavators weighing between 4 and 16 tonnes. It grinds dense vegetation, stumps and roots up to 25 cm in diameter into wood biomass, supporting fire prevention and site clearing. It is suitable for steep slopes and hard-to-access terrain and delivers consistent performance in demanding conditions.

Drive, safety and adjustment
The mulcher is powered by a high-torque hydraulic motor with V-belt transmission. Integrated safety shields and chain curtains reduce the risk of debris ejection. Mulching depth and direction are adjustable to limit soil disturbance and to improve mulch quality.

Professional version and mounting
The professional configuration uses the Modularis fully floating mount with hydraulic rotation to avoid stress transfer from the excavator to the attachment. The unit automatically retracts on impact with large obstacles such as stones or large roots. Mounting and drive can be adapted to the host machine to optimise performance and fuel consumption.

Benefits and performance claims

• Extends equipment service life and efficiency (manufacturer claim: at least +100%).
• Can reduce fuel consumption (manufacturer claim: up to 30%).
• Suitable for heavy-duty operations on steep and difficult terrain.

Important operational notes
Performance may be reduced when the mulcher is used with an existing hydraulic circuit sized for other attachments (e.g. breakers or grapples), particularly during arm or machine movement. Hydraulic return line pressures above 15 bar can cause hydraulic motor seal leaks and oil loss.

Technical specifications

• Compatible machine: excavators.
• Recommended excavator weight: 4–16 tonnes.
• Material processed: dense vegetation, stumps and roots.
• Maximum stump/root diameter: up to 25 cm.
• Drive: hydraulic motor with V-belt transmission.
• Mounting: Modularis fully floating mount with hydraulic rotation; automatic retraction on impact.
• Safety features: integrated shields and chain curtains.
• Adjustability: adjustable mulching depth and direction.
• Operational environments: agriculture, forestry, land clearing, steep and difficult-to-access terrain.
• Hydraulic note: avoid return pressures > 15 bar to preserve motor seals.
• Performance claims: potential fuel reduction up to 30%; potential equipment lifespan increase (manufacturer claim: at least 100%).
