Hydraulic auger MAUG series

for excavatorsfor backhoe loaderspiling

Product overview

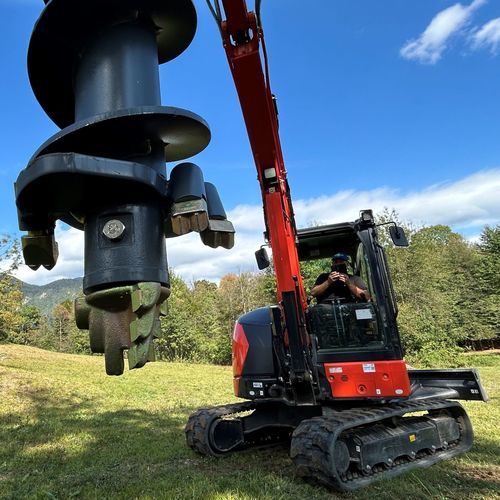

The Modularis Excavator Auger is a drilling attachment for excavators, tractors, backhoes, telehandlers, mini loaders and wheel loaders. Designed for drilling soil, tree stumps and compacted ground, it performs in rocky, frozen and dense terrain. Compatible with carrier machines from 2 to 27 tonnes and used across construction, forestry and agriculture.

Primary applications

• Piling and anchoring for foundations and site works
• Tree planting, fence installation and post digging in forestry and landscaping
• Fencing, concrete post drilling and orchard planting in agriculture

Main features

• Hydraulic motor with planetary drive providing high torque for effective drilling
• Quick-change coupling system for fast auger bit replacement
• Replaceable carbide-tipped auger bits for extended wear life
• Heavy-duty cutting edges for penetration of tough ground and roots
• Compact, machine-adapted design for use on a wide range of carriers

Auger Stump Planer
The Auger Stump Planer variant is intended for stump grinding and removal. It is suitable for parks, gardens and restricted-access sites where manoeuvrability matters. Enables quick stump removal and is compatible with various auger drives for efficient operation.

Bits and drilling range
Single and double auger bits are available and can be customised to soil conditions. Standard drilling diameters referenced: Ø10 mm up to Ø500 mm; extended drill ranges and special bits are available for specific machine models.

Technical specifications

• Compatibility: Excavators, tractors, backhoes, telehandlers, mini loaders, wheel loaders; carrier machines 2–27 t
• Applications: piling & anchoring; tree planting; fence & post digging; stump grinding (with stump planer)
• Drive and design: Hydraulic motor with planetary drive; quick-change coupling; compact design
• Cutting & wear parts: Replaceable carbide-tipped auger bits; heavy-duty cutting edges
• Bits: Single and double augers; customisable for soil conditions; standard diameters Ø10–500 mm (product line)
• Model MAUG-5000 — Carrier machine weight: 3–7 t; Working flow: 38–76 l/min; Max torque: 5056 N·m; Working pressure: 240 kg/cm²; Rotary speed: 29–58 rpm; Drill diameter: 150–600 mm
• Model MAUG-7000 — Carrier machine weight: 7–10 t; Working flow: 61–121 l/min; Max torque: 6931 N·m; Working pressure: 240 kg/cm²; Rotary speed: 37–72 rpm; Drill diameter: 150–900 mm
