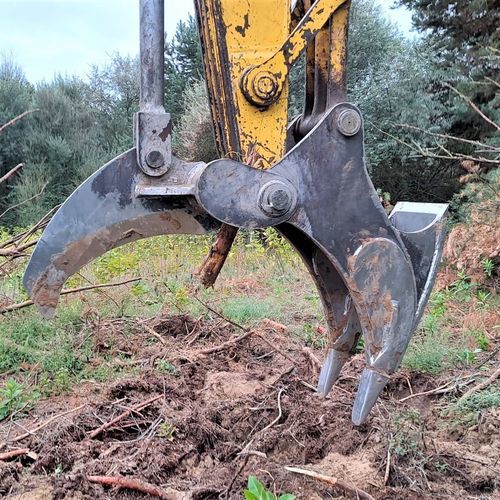

Log splitter MSS series

Overview Harness the full power of your excavator with the Modularis Tree Stump Splitter, designed for quick reduction of stumps and wood debris. Optimized for maximum penetration, it features front and rear jaws with sharp edges for effective two-sided splitting, and a bottom edge on the front jaw to increase downforce.

Construction and materials

• Knives made from Hardox500 steel.
• All parts crafted from heat-treated, quenched and tempered high-strength alloy steel.
• Oversized hardened bushings and bearings for heavy-duty operation and long lifespan.

Compatibility & warranty Custom-built to fit most 18–45 t excavators. Comes with a 1-year warranty.

Technical specifications

• General features:
  • Front and rear jaws with sharp edges for two-sided splitting.
  • Bottom edge on front jaw to provide added downforce.
  • Optimized for maximum penetration.
  • Hardox500 knives; heat-treated, quenched and tempered high-strength alloy steel construction.
  • Oversized hardened bushings and bearings.
  • Designed for heavy-duty operation; long service life.
  • Warranty: 1 year.
  • Fits most 18–45 t excavators.
• MSS 20.0:
  • Machine Operating Weight: 15–21 t / 33,000–46,000 lbs.
  • Max. Opening (A): 1500 mm / 59.1 in.
  • Width (B): 450 mm / 17.72 in.
  • Total Attachment Weight*: 850 kg / 1874 lbs.
  • *Total Attachment Weight does not include the connection plate.
• MSS 25.0:
  • Machine Operating Weight: 20–29 t / 44,000–63,700 lbs.
  • Max. Opening (A): 1650 mm / 64.96 in.
  • Width (B): 500 mm / 19.69 in.
  • Total Attachment Weight*: 920 kg / 2028 lbs.
  • *Total Attachment Weight does not include the connection plate.
