Tractor mechanical sweeper LD

for loaderselectrichydraulic

Overview

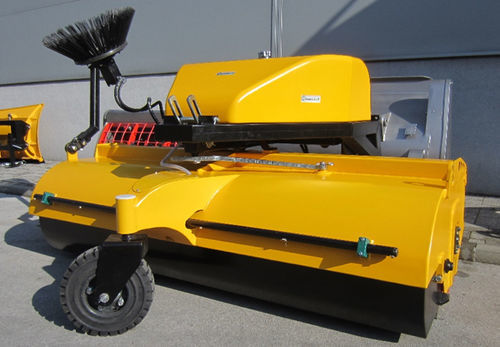

The Modularis Loader Sweeper, compatible with loaders and tractors, is designed to clean a wide range of surfaces including roads, yards and construction sites. Suitable for use in harsh conditions in industry, construction and agriculture, this attachment ensures reliable performance and safety. Built to last with solid rubber wheels and welded forks. Includes a 1-year warranty.

Key features

• Floating connection system that allows the brush to automatically adjust to uneven surfaces to increase cleaning efficiency and protect equipment.
• 20° left and right rotation/tilt to allow sweeping in the direction of travel.
• 600 mm diameter main brush with durable steel and PVC bristles; option for PVC-only bristles for sensitive agricultural environments.
• Optional side brush available for cleaning gutters, roadside ditches and kerbs.
• Waste collection in a bucket for easy hydraulic disposal or can be pushed to the side during operation.
• Non-corrosive polyester fibre water tank with electric pump to wet the surface and reduce dusting; special nozzles spray water over the surface during operation.
• Solid rubber wheels and welded forks for robust performance in tough conditions.

Applications
Designed for cleaning roads, yards and construction sites; suitable for industry, construction and agricultural sectors where durable, reliable sweeping is required.

Characteristics / Technical specifications

• Machine Operating Weight: Loader 6 to 15 tonnes; Telescopic Handler 6 to 10 tonnes; Tractor: 80-150 HP.
• Width: 2000-2300 mm.
• Weight (with floating connection, collection bucket & empty water tank): 770-800 kg.
• Water tank volume: 150 l (non-corrosive polyester fibre) with electric pump.
• Collection bucket volume: 200 l.
• Main brush diameter: 600 mm; bristles: steel + PVC (option PVC-only).
• Side brush: optional (for gutters, ditches, kerbs).
• Adjustability: floating connection for uneven surfaces; 20° rotation/tilt left and right.
• Dust control: integrated water spray nozzles and tank for surface wetting.
• Wheels & construction: solid rubber wheels; welded forks for durability.
• Warranty: 1 year.
