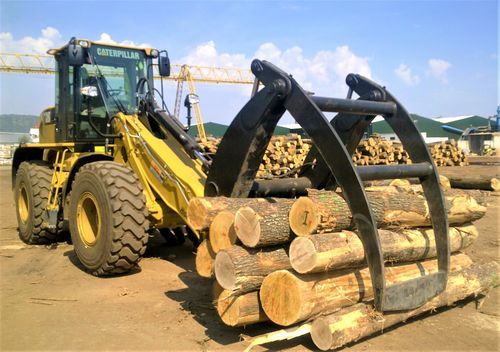

Log grapple MLG series

Product overview
Increase your log loading efficiency with the Modularis Log Grapple, engineered for loaders and telehandlers. The tool offers an optimum balance between tool weight and load capacity. The optimised closing geometry of the gripping jaws enables logs to be handled quickly and efficiently, improving operational performance. The Log Grapple is designed to increase productivity while minimising strain on machinery by providing a high load capacity at reduced weight.

Key features
- Optimised closing geometry of the gripping jaws for fast, efficient handling
- High load capacity combined with reduced tool weight to lower machine strain
- Leading edge reinforced with Hardox wear-resistant steel plates for extended durability
- Designed to reduce rolling resistance when moving logs, improving traction and handling
- 3-year warranty for product reliability and durability
- Claims of up to 30% reduction in execution time and fuel consumption when the correct model and geometry are selected

Applications
- Designed for use with loaders, telehandlers, excavators and similar machines for forestry, timber handling and related operations

Caractéristiques / spécifications techniques

• MLG 2.0 — Machine Operating Weight: 3 - 5 tonnes / 6 610 - 11 020 lbs
  Gripping Area: 0,50 m² / 0,60 G.V.
  Gripping Volume Required: 2,00 m³ / 2,62 G.V.
  Loader Power: 45 kW / 60 HP
  Weight: 400 kg / 882 lbs
• MLG 2.4 — Machine Operating Weight: 4 - 6 tonnes / 8 820 - 13 230 lbs
  Gripping Area: 0,60 m² / 0,72 G.V.
  Gripping Volume Required: 2,40 m³ / 3,14 G.V.
  Loader Power: 50 kW / 67 HP
  Weight: 500 kg / 1 102 lbs
• MLG 2.6 — Machine Operating Weight: 5 - 8 tonnes / 11 020 - 17 640 lbs
  Gripping Area: 0,65 m² / 0,78 G.V.
  Gripping Volume Required: 2,60 m³ / 3,40 G.V.
  Loader Power: 60 kW / 80 HP
  Weight: 700 kg / 1 543 lbs
• MLG 2.8 — Machine Operating Weight: 6 - 10 tonnes / 13 230 - 22 050 lbs
  Gripping Area: 0,70 m² / 0,84 G.V.
  Gripping Volume Required: 2,80 m³ / 3,66 G.V.
  Loader Power: 70 kW / 94 HP
  Weight: 800 kg / 1 764 lbs
• MLG 4.0 — Machine Operating Weight: 8 - 12 tonnes / 17 640 - 26 455 lbs
  Gripping Area: 1,00 m² / 1,20 G.V.
  Gripping Volume Required: 4,00 m³ / 5,23 G.V.
  Loader Power: 90 kW / 121 HP
  Weight: 900 kg / 1 984 lbs
• MLG 5.2 — Machine Operating Weight: 10 - 15 tonnes / 22 050 - 33 070 lbs
  Gripping Area: 1,30 m² / 1,55 G.V.
  Gripping Volume Required: 5,20 m³ / 6,80 G.V.
  Loader Power: 100 kW / 134 HP
  Weight: 1 100 kg / 2 425 lbs
• MLG 7.2 — Machine Operating Weight: 10 - 15 tonnes / 22 050 - 33 070 lbs
  Gripping Area: 1,80 m² / 2,15 G.V.
  Gripping Volume Required: 7,20 m³ / 9,42 G.V.
  Loader Power: 100 kW / 134 HP
  Weight: 1 450 kg / 3 197 lbs
• MLG 8.4.1 — Machine Operating Weight: 15 - 20 tonnes / 33 070 - 44 092 lbs
  Gripping Area: 2,10 m² / 2,51 G.V.
  Gripping Volume Required: 8,40 m³ / 10,99 G.V.
  Loader Power: 150 kW / 201 HP
  Weight: 1 600 kg / 3 527 lbs
• MLG 8.4.2 — Machine Operating Weight: 20 - 25 tonnes / 44 092 - 55 116 lbs
  Gripping Area: 2,10 m² / 2,51 G.V.
  Gripping Volume Required: 8,40 m³ / 10,99 G.V.
  Loader Power: 200 kW / 268 HP
  Weight: 2 000 kg / 4 409 lbs
• MLG 10.8 — Machine Operating Weight: 20 - 25 tonnes / 44 092 - 55 116 lbs
  Gripping Area: 2,70 m² / 3,23 G.V.
  Gripping Volume Required: 10,80 m³ / 14,13 G.V.
  Loader Power: 200 kW / 268 HP
  Weight: 2 500 kg / 5 512 lbs
• MLG 12.4 — Machine Operating Weight: 25 - 30 tonnes / 55 116 - 66 138 lbs
  Gripping Area: 3,10 m² / 3,71 G.V.
  Gripping Volume Required: 12,40 m³ / 16,22 G.V.
  Loader Power: 250 kW / 335 HP
  Weight: 2 800 kg / 6 173 lbs
