Excavator mechanical sweeper EX

hydraulicstreetoutdoor

Overview

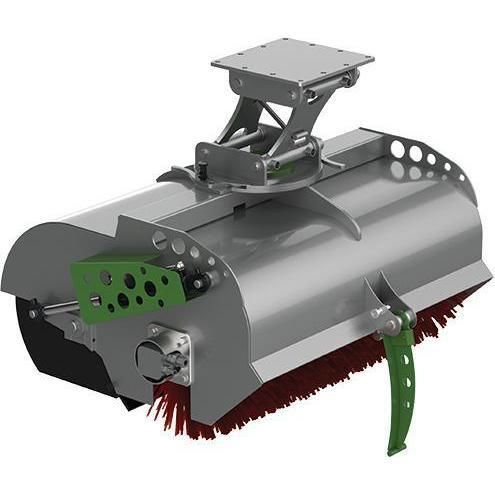

The Modularis sweeper is an excavator attachment engineered for efficient cleaning of roads, yards, construction sites, public areas and agricultural zones. It removes debris, loose snow, moss and sediment while adapting to uneven surfaces via a floating connection.

Design and operation
The unit features a 600 mm diameter spiral-wound brush combining steel and PVC bristles, with an alternative PVC-only brush available for livestock-safe applications. A floating mounting connection allows the brush to follow surface contours without damaging equipment. A hydraulic cylinder simplifies emptying of the waste collection bucket. Options include open or closed collection buckets and selectable left- or right-side sweeping. An additional one-year warranty is provided.

Performance and efficiency
Choosing the correct connection for the carrier excavator optimises performance: it can reduce execution time and fuel consumption by up to 30%, increasing productivity and lowering operational costs.

Applications

• Road and street cleaning
• Yards, paved areas and industrial sites
• Construction site cleanup
• Public spaces and municipal maintenance
• Agricultural areas and farms (PVC-only bristle option)

Key features

• 600 mm diameter spiral-wound brush (steel + PVC bristles)
• PVC-only brush option for livestock-safe use
• Floating connection to follow surface contours
• Hydraulic cylinder for easy waste-bucket emptying
• Open or closed waste collection bucket options
• Selectable left- or right-side sweeping
• Designed for excavators 6–16 t
• Additional one-year warranty

Technical specifications

• Machine operating weight: 6 to 16 tonnes
• Working width: 1200 mm
• Brush diameter: 600 mm
• Weight without floating connection: 290 kg
• Floating connection weight: 30 kg
