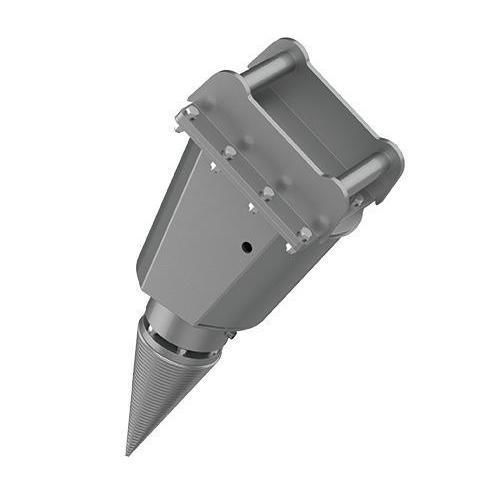

Log splitter MCS series

Product description
The Modularis Cone Splitter features a precision-engineered threaded cone for efficient splitting of softwood, hardwood, twisted stumps and roots. The two-piece steel cone with replaceable tip and double-threaded profile ensures fast penetration and allows easy positioning and handling of logs before and after splitting.

Mounting and compatibility
Designed for simple attachment to excavators, mini loaders, tractors and compact machines. Compatible with machines weighing 3–18 tonnes. Enables safe operation and splitting of small stems, large logs and stumps directly from the machine cab.

Durability and components
Replaceable cone tips simplify maintenance and extend service life. The unit uses double-row roller bearings and robust hydraulic motors engineered for heavy-duty use. More than 15,000 motors have been integrated across the product range. Professional-grade attachment with a 3-year warranty.

Media
Product images and an operation video are available to illustrate mounting and field performance.

Characteristics / technical specifications

• Applications: splitting softwood, hardwood, twisted stumps and roots; small stems, large logs and stumps.
• Design: two-piece steel threaded cone with replaceable tip; double-threaded profile for rapid penetration and easy log maneuvering.
• Bearings and drive: double-row roller bearings; hydraulic motors rated for heavy-duty conditions; over 15,000 motors integrated into products.
• Warranty: 3-year warranty.
• Mounting: compatible with excavators, mini loaders, tractors and compact machines; operation from machine cab.
• MCS 3.0 — Machine Operating Weight: 3–6 tonnes; Weight: 130 kg; Motor Volume: 950 cm³; Shaft Torque: 2100 Nm; Operating Pressure: 250 bar; Cone Diameter: Ø = 170 mm
• MCS 6.0 — Machine Operating Weight: 6–12 tonnes; Weight: 150 kg; Motor Volume: 630 cm³; Shaft Torque: 3100 Nm; Operating Pressure: 300 bar; Cone Diameter: Ø = 200 mm
• MCS 9.0 — Machine Operating Weight: 12–18 tonnes; Weight: 190 kg; Motor Volume: 800 cm³; Shaft Torque: 3400 Nm; Operating Pressure: 300 bar; Cone Diameter: Ø = 230–270 mm
