Waste pulverizer MDHG seriesconcretefor metalshydraulic
Add to favorites
Compare this product
Characteristics
- Product applications
- waste, for metals, concrete
- Technology
- hydraulic
- Other characteristics
- robust, heavy-duty, high-performance
- Sector
- for recycling, for primary demolition
- Machine length
Max.: 1,675 mm
(66 in)Min.: 1,170 mm
(46 in)- Machine width
Max.: 590 mm
(23 in)Min.: 310 mm
(12 in)- Machine height
Max.: 1,100 mm
(43 in)Min.: 740 mm
(29 in)- Machine weight
Max.: 18,000 kg
(39,683 lb)Min.: 4,000 kg
(8,818 lb)
Description
Product overview

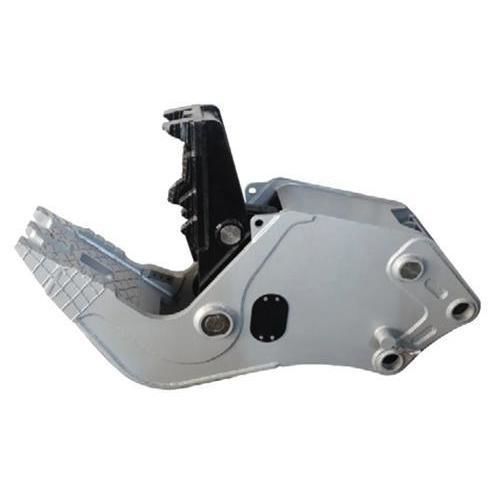

The Modularis Hydraulic Concrete Pulverizer is engineered for efficient demolition and recycling operations. It performs crushing of reinforced concrete and cutting of light steel structures, combining high crushing and shear forces with fast closing cycles. A 360° rotation allows precise positioning of the attachment for controlled work.
Durability & maintenance
Manufactured with wear‑resistant materials to withstand heavy-duty use. Supplied with a 1-year warranty. Maintenance is simplified by a quick-change system for teeth and protective wear plates to reduce downtime.
Applications
Characteristics / technical specifications
The Modularis Hydraulic Concrete Pulverizer is engineered for efficient demolition and recycling operations. It performs crushing of reinforced concrete and cutting of light steel structures, combining high crushing and shear forces with fast closing cycles. A 360° rotation allows precise positioning of the attachment for controlled work.
Durability & maintenance
Manufactured with wear‑resistant materials to withstand heavy-duty use. Supplied with a 1-year warranty. Maintenance is simplified by a quick-change system for teeth and protective wear plates to reduce downtime.
Applications
- Demolition of reinforced concrete structures
- Cutting and processing of light steel structures
- Recycling and waste separation where concrete breaking is required
Characteristics / technical specifications
- General
- Series: MDHG series
- Rotation: 360°
- Primary use: demolition, recycling, concrete crushing, cutting light steel
- Maintenance: quick-change teeth and wear plates
- Warranty: 1 year
- MDHG-02
- Machine operating weight: 4–10 tonnes
- Attachment weight: 320 kg
- Opening (A): 450 ± 30 mm
- Length (B): 1170 mm
- Height (C): 740 mm
- Width: 310 mm
- Max crushing force: 83 tonnes
- Max shear force: 126 tonnes
- Working pressure: 230 bar
- MDHG-06
- Machine operating weight: 10–18 tonnes
- Attachment weight: 900 kg
- Opening (A): 700 ± 30 mm
- Length (B): 1675 mm
- Height (C): 1100 mm
- Width: 590 mm
- Max crushing force: 105 tonnes
- Max shear force: 165 tonnes
- Working pressure: 280 bar
