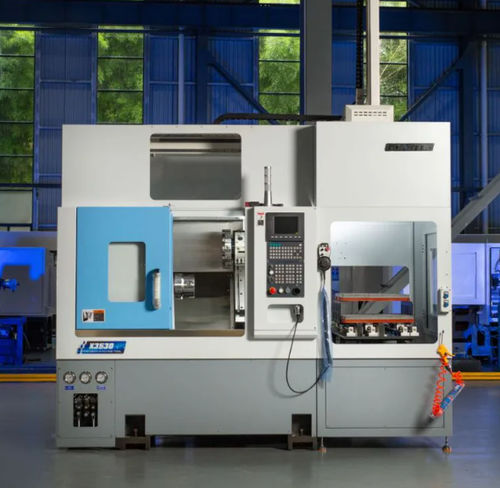

CNC lathe X3630

horizontalslant bedA2-5

Overview

The X3630 is a 30° slant-bed CNC lathe configured for gang-tool turning and bar work. It combines an HT300 cast-iron slant bed and a built-in direct-drive spindle (A2-5, 10.8 kW, 0–5000 rpm) to provide stable heavy cutting, precise positioning and through-bar capability (Ø35 mm). The machine integrates hydraulic, lubrication and cooling systems for continuous industrial production.

Main features

• Machine body: integrated HT300 cast-iron 30° slant bed with high-temperature stoving varnish for corrosion resistance, rigidity and vibration damping.
• CNC controller: SYNTEC 22TA with multi-part processing functions and simplified programming for efficient setup.
• Spindle: direct-drive A2-5 spindle 10.8 kW, 0–5000 rpm, spindle hole Ø48 mm, torque 37 / 113 N·m; NTN 3+2 bearing arrangement with P4 support.
• Chuck: 6-inch hydraulic hollow chuck (3 jaws), clamping range approx. Ø17–210 mm, max listed clamping force up to 140 kN; hardened and ground contact surfaces with direct lubrication.
• Motion components: PMI 3210 C3 ball screws (X/Z) and 30 mm PMI linear guides; NACHI bearings for ball-screw support.
• Feed motors: X/Z servo feeding power 1.7 kW for accurate positioning and responsive feed motion.
• Hydraulics & lubrication: 40 L Seven Ocean hydraulic station (1.5 kW) and 2 L Ishan circular lubrication system; electrical cabinet with internal heat exchanger.
• Cooling & cleaning: 120 L tank with 2V-30 coolant pump and multi-stage filtration.
• Electrical components: Schneider low-voltage components and full safety interlocks; automatic safety switch locking.
• Machine guarding: stainless-steel inner fence and full closed cover for operator protection and chip containment.

Standard configuration highlights

• SYNTEC 22TA CNC (Taiwan)
• PMI 3210 C3 ball screws and 30 mm PMI linear guideways (Taiwan)
• Seven Ocean hydraulic station and Ishan lubrication system (Taiwan)
• NACHI bearings (Japan) for ball-screw support
• Schneider electrical components (France)

Technical specifications

• Model: X3630
• Max swing over bed: Ø350 mm
• Max machining diameter: Ø160 mm
• Max machining length: 120 mm
• X axis travel: 400 mm
• Z axis travel: 300 mm
• Spindle structure: independent 3 front + 2 rear bearings
• Spindle nose: A2-5
• Max bar capacity (inner): Ø35 mm
• Spindle power: 10.8 kW (direct drive)
• Spindle speed range: 0–5000 rpm
• Spindle center height: 1120 mm
• Spindle torque: 37 / 113 N·m
• Servo feeding power (X/Z): 1.7 kW
• Hydraulic chuck: 6 inches
• X/Z rapid traverse: 20 m/min
• Repeatability: 0.003 mm
• Hydraulic tank: 40 L
• Hydraulic motor: 1.5 kW
• Oil lubrication capacity: 2 L
• Total machine power: 15 kW
• Overall dimensions (L×W×H): 1850 × 1750 × 1730 mm
• Total weight: 2200 kg
• Warranty: 12 months

Applications

• Turning of shafts, pins and precision cylindrical parts
• High-volume bar feeding production and subcontract machining
• Automotive, hydraulic, pneumatic and general mechanical components

Service & warranty

• 12-month warranty on components and workmanship
• Spare parts and technical support available through our distribution network
