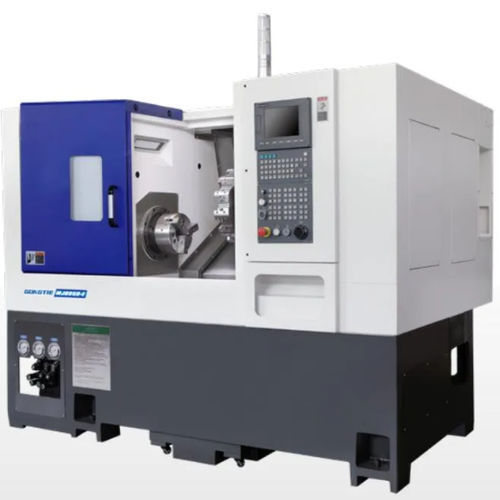

CNC lathe MJ0850-E

horizontal2-axisslant bed

Overview

MJ0850-E is a slant-bed, horizontal CNC turning lathe designed for heavy-duty and high-precision turning. It pairs an HT300 cast‑iron slant bed with a 12‑station servo turret and a belt-driven spindle to support stable production and heavy cutting operations.

Main components and highlights

• B ed: Integrated HT300 cast‑iron slant bed for high rigidity, full‑part loading and effective chip evacuation.
• CNC system: SYNTEC 7TA (option: FANUC or SIEMENS) with user-friendly programming and advanced canned functions.
• Spindle: 11 kW belt-driven spindle, A2-6 nose, oil cooling, precision bearings (NSK/NTN P4) for heavy cutting.
• Chuck: 8" hydraulic hollow 3-jaw chuck, high clamping rigidity and direct lubrication; spindle bore Φ66 mm (bar passage 51 mm).
• Turret: 12-station servo turret, 100 mm center height, fast tool change and high rigidity for heavy turning.
• Guideways & ball screws: PMI 35 mm roller guideways and PMI 3210-C3 ball screws for rapid feeds, high positioning accuracy and long life; screws oil-lubricated/cooled.
• Hydraulics & lubrication: 40 L domestic hydraulic station, MT4 hydraulic tailstock, Ishan 2 L oil lubrication for guides/screws, 120 L coolant tank with 2V-30 lift pump.
• Electrical & safety: Complete electrical cabinet (Delixi noted), safety interlocks and heat exchanger; full closed stainless-steel inner fence and machine cover.

Standard configuration and accessories (summary)

• HT300 cast iron slant bed machine body.
• SYNTEC 7TA CNC controller (option: FANUC / SIEMENS).
• Belt-driven spindle with oil cooling (11 kW, A2-6).
• PMI 3210 ball screws and PMI 35 roller guideways.
• 12-station servo turret (100 mm center height) and 8" hydraulic hollow 3-jaw chuck.
• MT4 hydraulic tailstock, 40 L hydraulic station, 2 L lubrication system, 120 L coolant tank and 2V-30 pump.
• Standard electrical components (Schneider/Delixi noted), toolbox, working/warning lights, stainless steel inner fence and full machine cover.

Applications

• Precision and general turning for automotive, aerospace components, industrial machinery, electronics and other metalworking sectors.

Technical specifications

• Model: MJ0850-E
• Max. swing over bed: Φ650 mm
• Max. machining diameter: Φ320 mm
• Max. machining length: 500 mm
• X axis travel: 185 mm
• Z axis travel: 556 mm
• Carriage travel (max): 470 mm
• Tailstock quill travel (max): 100 mm
• Spindle nose: A2-6
• Spindle bore: Φ66 mm (bar passage 51 mm)
• Spindle power: 11 kW
• Spindle speed range: 0–3000 rpm
• Hydraulic chuck size: 8 inch
• Servo turret center height: 100 mm
• Servo turret stations: 12 pcs
• Tool shank size: 25 mm
• Boring toolholder ID: Φ40 mm
• Number of toolholders: 4
• X/Z rapid traverse: 20 m/min
• X/Z repeatability: 0.003 mm
• Hydraulic tank capacity: 40 L
• Hydraulic station motor power: 1.5 kW
• Oil lubrication capacity: 2 L
• Total machine power: 18 kW
• Machine dimensions (L×W×H): 2262 × 1668 × 1760 mm
• Total machine weight: 3200 kg
• Warranty: 12 months
