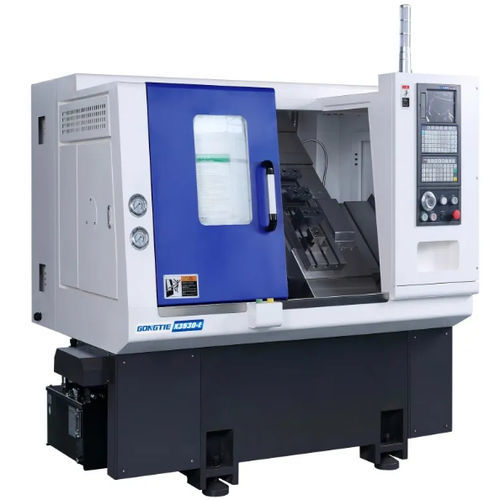

CNC lathe X3530-E

horizontal2-axisslant bed

Overview
The X3530-E is a slant-bed CNC lathe with an integrated rotary system, designed for turning and turning-milling on small to medium parts. It features a 45° slant bed, HT300 cast-iron construction and a belt-driven spindle to balance torque and rigidity for standard industrial machining needs.

Key features

• HT300 cast-iron bed with 45° slant for rigidity and improved chip flow.
• SYNTEC 7TA CNC system standard; optional FANUC or SIEMENS controls.
• Belt spindle: 5.5 kW spindle motor, max 3500 rpm; pulley gear option for increased torque; spindle bearings with 3+2 structure (CSC 7013/7015).
• PMI C3 ball screws and CSK H-grade roller guide ways for accurate feeding and positioning.
• Hydraulic collet or hydraulic chuck options for workpiece clamping.
• Domestic hydraulic unit (50 L, 0.75 kW) for chuck and cylinders.
• 2 L domestic oil lubrication system for guide ways and screws; oil-separator lubrication.
• Coolant and chip management: water lift pump and 38 L coolant tank (pump specification referenced in documentation); spindle coolant system included.
• Electrical components: DELIXI parts; electric cabinet air conditioning; Syntec drivers and servos (optionally FANUC/SIEMENS).
• Full inner fence and fully enclosed machine cover for safety and chip containment.

Machine parts / Components

• Lathe bed: Integrated HT300 cast-iron slant bed with high-temperature stoving paint; designed for rigidity, vibration damping and chip evacuation.
• CNC system: Syntec 7TA all-in-one controller; optional FANUC or SIEMENS for alternative integration and automation.
• Spindle: Belt spindle with A2-5 nose, 48 mm bore, oil cooling; 5.5 kW, 0–3500 rpm; CSC bearings and 3+2 bearing arrangement for stable torque and low vibration.
• Collet & chuck: Hydraulic clamping; gang tool holder layout with up to 5 tool positions and one side live tool; customizable tool arrangement.
• Guide way & screw: PMI (Taiwan) ball screws (C3 grade, 2508 φ25 mm x 8 mm) and CSK roller guide ways (25 mm block) driven by AM3 motor.
• Electric box: Syntec axis drivers, DELIXI electrical components, electric cabinet air conditioning for temperature control.
• Hydraulic system: Domestic/Taiwan components; hydraulic unit supports chuck and cylinders (50 L, 0.75 kW).
• Lubrication & cooling: 2 L lubrication unit for guides and screws, water lift pump and 38 L coolant tank for coolant cycle; spindle coolant included.

Standard configuration (summary)

• Lathe bed: HT300 cast-iron slant bed.
• CNC system: Syntec 7TA (1 set).
• Servo/axes motors & spindle drive: Syntec components.
• Main spindle: belt spindle (1 set) with Syntec spindle motor.
• Screws & guide ways: PMI screws (2 pcs) and CSK guide ways (4 pcs).
• Hydraulic system: Xingyuan (1 set).
• Included items: rotatable live tool, lubrication system (Tongshi), spindle coolant system, full guards.

Applications

• General machining, automotive components, textile machinery parts, electronic equipment components, precision machinery, refrigeration industry parts, 3C part processing and other industrial applications requiring turning and turning-milling.

Technical specifications

• Model: X3530-E
• Max. swing over bed: 420 mm
• Max. turning diameter: 100 mm
• Max. turning length: 120 mm
• X axis travel: 350 mm
• Z axis travel: 300 mm
• Spindle nose: A2-5
• Spindle bore: 48 mm
• Spindle motor power: 5.5 kW
• Spindle speed (rated / max): 3500 r/min
• Spindle torque (rated / max): 34 / 47 N·m
• Tool holder quantity: 5
• Boring tool holder: φ20 mm
• X / Z rapid traverse: 20 / 20 m/min
• Axis repeatability: 0.005 mm
• Machine full loading power: 8 kW
• Dimensions (L x W x H): 1800 x 1450 x 1610 mm
• Total weight: 1760 kg
• Hydraulic cylinder: 536 (as per specification table)
• Cylinder bore: 36 mm
• Warranty: 12 months
