CNC lathe P3518horizontal2-axisflatbed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Structure
- flatbed
- Spindle mount
- A2-5
- Drive system
- direct-drive
- Applications
- for small parts production
- Performance
- high-precision
- Associated function
- milling
- Options and accessories
- with integrated bar feeder
- Diameter
360 mm
(14.17 in)- Spindle speed
6,000 rpm
(37,699.112 rad.min-1)- Maximum part length
100 mm
(4 in)- Maximum cutting diameter
100 mm
(4 in)- Bar capacity
25 mm, 35 mm
(1 in, 1 in)- Axe X
320 mm
(13 in)- Axe Z
175 mm
(7 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
8.5 kW
(11.6 hp)- Maximum torque
22 Nm, 76 Nm
(16 ft.lb, 56 ft.lb)- Coolant capacity
38 l
(10 gal)- Overall lenght
1,595 mm
(63 in)- Overall width
1,428 mm
(56 in)- Overall height
1,700 mm
(67 in)- Weight
1,600 kg
(3,527 lb)
Description
Overview
Main components and features
Technical specifications
Standard configuration & options

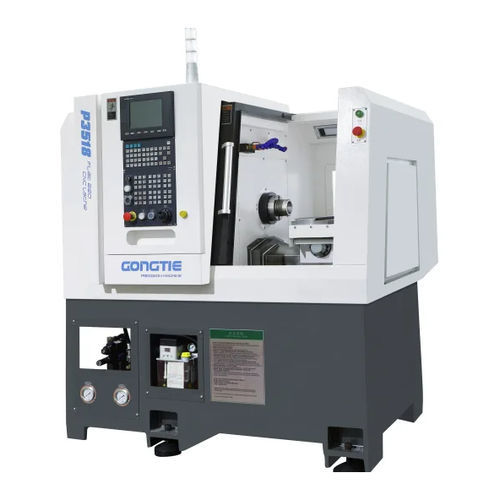

- Model P3518 is a flat-bed CNC lathe designed for high-precision machining of small parts, built for rigidity, thermal stability and integration into automated production lines.
- Standard CNC: Syntec 22TA (FANUC or SIEMENS optional).
Main components and features
- HT300 cast-iron bed with thermal-resistant coating for high rigidity and vibration damping.
- Direct-drive synchronous spindle with oil cooling for constant torque, low vibration and precise positioning (spindle bore φ48 mm, nose A2-5).
- 5-station gang tool holder suitable for combined turning and milling operations on small parts.
- PMI ball screws and linear guides (C3 quality) for accurate feed and positioning.
- Hydraulic clamping system and external hydraulic station (Seven Ocean) for chucking and tailstock functions; hydraulic tank 20 L.
- Front oil lubrication system (2 L) and coolant pump with 38 L tank for tool cooling and chip evacuation.
- Low-voltage electrical components from Schneider and an air-conditioned electrical cabinet for thermal protection.
- Fully enclosed machine cover and internal guarding for safety and clean shopfloor operation.
Technical specifications
- Model: P3518
- Max swing over bed: 360 mm
- Max turning diameter: 100 mm
- Max turning length: 100 mm
- Centre height (spindle → tool table): 50 mm
- Centre height (spindle → floor): ≈1080 mm
- X-axis travel: 320 mm
- Z-axis travel: 175 mm
- Spindle nose: A2-5
- Hydraulic clamping (collet/chuck): 35
- Spindle bore: 48 mm
- Max bar capacity (internal/external): 35 / 25 mm
- Spindle motor power: 8.5 kW
- Spindle max speed (rated): 6000 rpm
- Spindle rated max torque: 22 / 76 N·m
- Rapid traverse X/Z (G0): 20 m/min
- Number of tool positions: 5
- Tool shank size: 16 mm
- Boring tool holder: φ20 mm
- X/Z axis repeatability: 0.003 mm
- Coolant tank capacity: 38 L
- Hydraulic tank capacity: 20 L
- Machine installed power: 12 kW
- Dimensions (L × W × H): 1595 × 1428 × 1700 mm
- Total machine weight: 1600 kg
- Warranty: 18 months
Standard configuration & options
- Standard: HT300 flat bed, Syntec CNC, Syntec AM3 servos, motorized spindle, PMI ball screws and linear guides, Seven Ocean hydraulic unit, automatic lubrication, coolant pump and tanks, Schneider electrical components.
- Options: FANUC or SIEMENS CNC, alternative spindle bearings, hydraulic chuck variants, automation interfaces for bar feeding/part handling, customized tooling setups.
