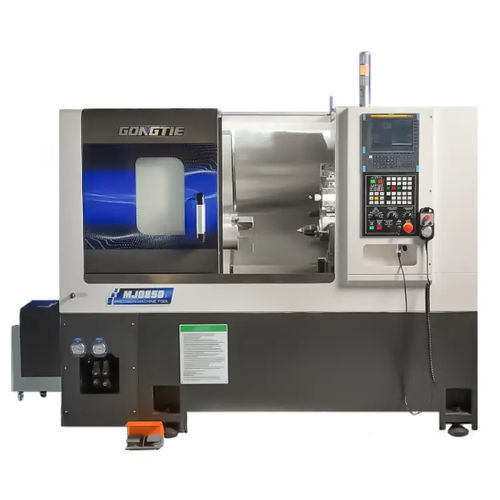

CNC lathe MJ0850horizontalslant bedA2-6
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Structure
- slant bed
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools, 8 tools
- Drive system
- servo-driven
- Applications
- for automotive applications, for aerospace applications, for production
- Performance
- high-precision, high-rigidity
- Associated function
- milling
- Options and accessories
- automated loading/unloading, with gantry robot, with integrated bar feeder
- Diameter
600 mm
(23.62 in)- Spindle speed
Min.: 0 rpm
(0 rad.min-1)Max.: 4,500 rpm
(28,274.334 rad.min-1)- Maximum part length
500 mm
(20 in)- Maximum cutting diameter
320 mm
(13 in)- Bar capacity
40 mm, 50 mm
(2 in, 2 in)- Axe X
185 mm
(7 in)- Axe Z
556 mm
(22 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
15 kW
(20.4 hp)- Maximum torque
91 Nm, 260 Nm
(67 ft.lb, 192 ft.lb)- Coolant capacity
40 l
(11 gal)- Overall lenght
2,261 mm
(89 in)- Overall width
1,668 mm
(66 in)- Overall height
1,760 mm
(69 in)- Weight
3,200 kg
(7,055 lb)
Description
Overview
Key features
Machine parts / components
Applications and options
Technical specifications
- MJ0850 is a horizontal slant-bed CNC turning-milling lathe engineered for integrated turning and milling in industrial production. It combines an HT300 cast-iron slant bed, a synchronous motorized spindle and a servo-driven turret with a hydraulic tailstock to support automated, heavy-duty precision operations.
Key features
- HT300 integrated cast-iron slant bed for high rigidity and vibration damping.
- Syntec 22TA CNC system (FANUC or SIEMENS optional) for programming and control.
- 15 kW synchronous motorized spindle with NSK P4 bearings, oil cooling and high torque/positioning accuracy.
- 8-inch hydraulic hollow chuck (3-jaw) with through-spindle capability; spindle bore Ø66 mm.
- 12-station servo turret (100 mm center height) for rapid tool indexing and heavy turning.
- PMI 3210 ball screws and PMI roller guide ways (MSR35R-P) for high-precision feeding and repeatability.
- Seven Ocean 40 L hydraulic station (1.5 kW) supplying stable hydraulic power for chuck, spindle cylinder and tailstock.
- 2 L forced-feed oil lubrication system and multi-stage cooling/filtration with 2V-60 water-lifting pump and 120 L tank.
- Fully enclosed machine cover and stainless-steel inner fence for chip control and operator safety.
- Schneider low-voltage electrical components and heat exchanger in the electrical cabinet.
Machine parts / components
- Lathe bed: integrally cast HT300 iron, high-temperature stoving varnish, designed for full-part loading and chip conveyance.
- CNC system: Syntec 22TA standard; FANUC or SIEMENS optional.
- Spindle: synchronous built-in motorized spindle, NSK P4 bearings, oil cooling, low vibration and precise torque control.
- Chuck: 8" hydraulic hollow chuck, hardened and ground contact surfaces, direct lubrication for high clamping accuracy.
- Turret: 12-station servo turret, 100 mm center height, supports tool shank φ25 mm and drilling holder ID φ40 mm.
- Tailstock: hydraulic tailstock with MT4 taper, tailstock travel 470 mm, quill travel 100 mm.
- Guide way & ballscrew: PMI roller guides (35 mm) and PMI 3210 ball screws for X/Z axes with oil lubrication and cooling.
- Hydraulic station: Seven Ocean 40 L, 1.5 kW motor for hydraulic functions.
- Cooling & cleaning: water-lifting pump 2V-60, large coolant tank and filtration system.
- Electrical box: Schneider components, safety interlock and heat exchanger.
Applications and options
- Suitable for automotive, aerospace, electronics, refrigeration, precision machinery and general turned parts production.
- Available options: FANUC/SIEMENS controller, live tooling, bar feeder, robot integration, chip conveyors, automatic doors, tool measurement systems, C-axis indexing and other automation accessories.
Technical specifications
- Model: MJ0850
- Max. swing diameter over bed: 600 mm
- Max. turning diameter: 320 mm
- Max. turning length: 500 mm
- X axis travel: 185 mm
- Z axis travel: 556 mm
- Tailstock travel: 470 mm
- Tailstock quill travel: 100 mm
- Spindle nose: A2-6
- Hydraulic chuck size: 8 inch
- Spindle bore diameter: 66 mm
- Max. bar capacity (inner/outer): 50 / 40 mm
- Spindle motor power: 15 kW
- Spindle max speed: 0–4500 r/min
- Spindle rated torque / max torque: 91 / 260 N·m
- X/Z axis rapid traverse (G0): 20 / 20 m/min
- Tool holder quantity: 4 (standard turret/tool stations as indicated)
- Tool shank size: 25 mm
- Boring tool holder ID: φ40 mm
- Optional turret center height (backside): 100 mm
- Tools quantity (turret capacity): 8 pieces
- X/Z axis repeatability: 0.003 mm
- Hydraulic tank capacity: 40 L
- Machine full loading power: 23 kW
- Dimension (L x W x H): 2261 x 1668 x 1760 mm
- Total machine weight: 3200 kg
- Warranty: 12 months
- MOQ: 1 set
Catalogs
No catalogs are available for this product.
See all of Ningbo GongTie Precision Machinery Co.,LTD‘s catalogsOther Ningbo GongTie Precision Machinery Co.,LTD products
