CNC lathe MJ0830

horizontal2-axisslant bed

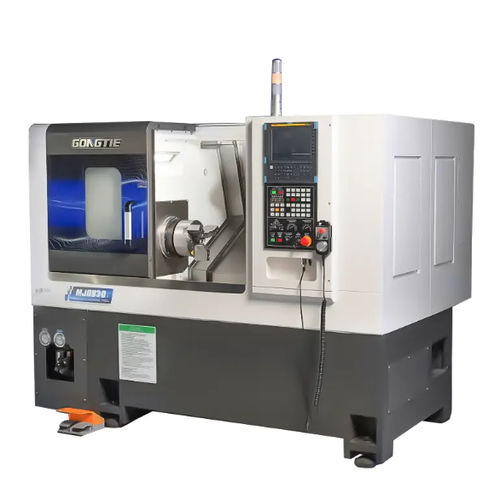

The MJ0830 is a slant-bed CNC turning lathe equipped with a 12-station servo turret and a 15 kW direct-drive spindle (A2-6). Designed for rigidity, low vibration and accurate turning, the MJ0830 supports automation and auxiliary modules to enable one-lathe two-step processing and high productivity.

Key product highlights

• High-performance direct-drive spindle with constant torque and low vibration.
• Rapid response on start/stop and speed changes for stable cutting performance.
• Customized 12-station high-rigidity servo turret for fast tool indexing and heavy turning.
• High-rigidity box guideway carriage; linear guideway available as an option.
• Hydraulic tailstock standard; programmable hydraulic tailstock or sub-spindle optional for two-step processing.
• Designed for integration with automation: bar feeders, robots, gantry systems and parts handling devices.

Main machine parts and features

• Lathe bed: Integrated HT300 cast iron slant bed providing super rigidity, stable support and efficient chip flow.
• CNC system: Syntec 22TA standard; FANUC or SIEMENS optional for compatibility with factory requirements.
• Spindle: Built-in motorized synchronous spindle with NSK/NTN P4 bearings, oil cooling, constant torque; speed range per configuration.
• Chuck: 8" hydraulic hollow chuck, 3-jaw, max clamping Ø210 mm, hardened and ground contact surface, direct lubrication for high clamping accuracy.
• Turret: 12-station servo turret, 100 mm center height (configurable), supports multiple live and driven tools.
• Tailstock: Hydraulic tailstock (MT4 taper), quill travel up to 100 mm; programmable option available.
• Guide way & ball screws: PMI 35 mm roller guideway and PMI 3210 (X/Z) C3 ball screws with oil lubrication and servo drive for fast feed and long life.
• Cooling & cleaning: 2V-30 coolant pump, large tank and filtration for coolant supply and chip removal.
• Electrical & hydraulic systems: Schneider low-voltage components, seven-ocean hydraulic station (40 L) and circulated lubrication system (Ishan) included.

Available options / accessories

• SIEMENS 828D or FANUC 0i TF CNC controller.
• Live tooling / driven tools, C-axis indexing, indexing chuck.
• Sub-spindle, programmable hydraulic tailstock.
• Bar feeder, front/back feeding, swing tray feeding.
• Robotic integration: robot arm, gantry loading/unloading systems.
• Automatic measuring systems, tool presetters, parts catcher, chip conveyor, oil mist collector, high-pressure coolant.
• Automatic door, door lock switch, foot switch and other safety/peripheral devices.

Standard configuration (selection)

• Lathe bed: Horizontal slant bed HT300 cast iron — China — Qty: 1
• CNC system: Syntec 22TA — Taiwan — Qty: 1
• Servo motor: Syntec — Taiwan — Qty: 1
• Main spindle: Gongtie motorized spindle — China — Qty: 1
• Spindle drive motor: Syntec SMH Series — Taiwan — Qty: 1
• Spindle encoder: Syntec — Taiwan — Qty: 1
• Spindle bearings: NTN — Japan — Qty: 5
• Spindle coolant system: Xinfu — China — Qty: 1
• Ball screws: PMI 3210 — Taiwan — Qty: 2
• Guide way: PMI35 roller linear guideway — Taiwan — Qty: 4
• Axes motor: Syntec AM11 — Taiwan — Qty: 2
• Hydraulic system: Seven Ocean — Taiwan — Qty: 1
• Lubrication system: Ishan — Taiwan — Qty: 1
• Cooling system: Luikar — Taiwan — Qty: 1
• Tool box: Gongtie — China — Qty: 1
• Low-voltage electrics: Schneider — France — Qty: 1

Applications

• Turning of shafts, precision components and medium-sized parts for automotive, general machinery, electronics, aerospace and precision equipment industries.

Technical specifications

• Model: MJ0830
• Max. swing diameter over bed (mm): 650
• Max. turning diameter (mm): 320
• Max. turning length (mm): 300
• X axis travel (mm): 185
• Z axis travel (mm): 351
• Tailstock travel (mm): 270
• Tailstock quill travel (mm): 100
• Spindle nose size: A2-6
• Hydraulic chuck size (inch): 8
• Spindle bore diameter (mm): 66
• Max. bar capacity (inner/outer) (mm): 54 / 40
• Spindle motor power (kW): 15
• Spindle max. speed (r/min): 0 - 4500
• Spindle rated torque / max. torque (N·m): 95.5 / 270
• X/Z axis rapid traverse (G0) (m/min): 20
• Tool holder quantity (pcs): 4 (standard)
• Tool shank size (mm): 25
• Boring tool holder ID (mm): φ40
• Optional turret center height (mm): 100 (rear)
• Tools quantity (pcs): 8 (depending on configuration)
• X/Z axis repeatability (mm): 0.003
• Hydraulic tank capacity (L): 40
• Machine full loading power (kW): 23
• Dimension (L x W x H) (mm): 1985 x 1668 x 1988
• Total machine weight (kg): 3280
• Warranty (months): 18
