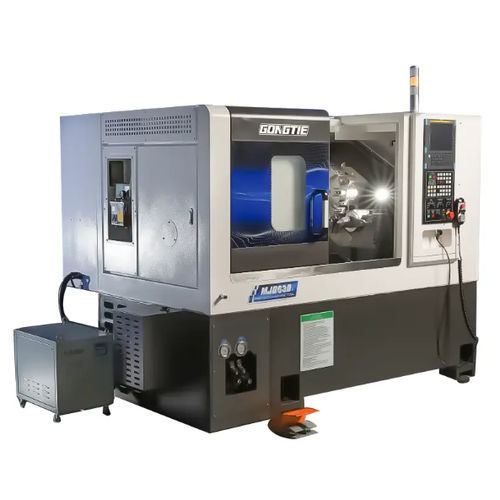

CNC lathe MJ0630horizontal2-axisslant bed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Structure
- slant bed
- Number of spindles
- 2-spindle
- Spindle mount
- A2-5
- Number of tool stations
- 12 tools, 4 tools, 8 tools
- Drive system
- direct-drive
- Applications
- for metal, for automotive applications, for aerospace applications, for production
- Performance
- high-precision, high-rigidity
- Associated function
- milling
- Options and accessories
- automated loading/unloading, with gantry loader, with gantry robot, with integrated bar feeder
- Diameter
650 mm
(25.59 in)- Spindle speed
Min.: 0 rpm
(0 rad.min-1)Max.: 5,000 rpm
(31,415.927 rad.min-1)- Maximum part length
300 mm
(12 in)- Maximum cutting diameter
320 mm
(13 in)- Bar capacity
35 mm, 45 mm
(1 in, 2 in)- Axe X
185 mm
(7 in)- Axe Z
351 mm
(14 in)- Rapids on X
20 mm/min
(0 in/s)- Rapids on Z
20 m/min
- Nominal power
13.4 kW
(18.2 hp)- Maximum torque
64 Nm, 120 Nm
(47 ft.lb, 89 ft.lb)- Coolant capacity
40 l
(11 gal)- Overall lenght
1,985 mm
(78 in)- Overall width
1,668 mm
(66 in)- Overall height
1,988 mm
(78 in)- Weight
2,980 kg
(6,570 lb)
Description
MJ0630 is a high-precision slant-bed CNC lathe engineered for rigid, stable turning and optional two-step processing using an optional sub-spindle. The design combines a direct-drive spindle, a high-rigidity bed and a 12-station servo turret to address demanding production turning tasks.
Key features
Machine components and assemblies
Options & automation
Applications
Technical specifications
Key features
- Direct-drive spindle delivering stable torque, low vibration and fast acceleration.
- Custom 12-station servo turret for rapid tool indexing and heavy-duty turning operations.
- High-rigidity box-guide carriage (linear guide optional) for vibration resistance and machining stability.
- Standard hydraulic tailstock; optional programmable hydraulic tailstock or sub-spindle to enable single-machine two-step processing and improved part handling.
- 6-inch hydraulic hollow 3-jaw chuck with direct lubrication and hardened, ground contact surfaces.
Machine components and assemblies
- Lathe bed: Integrated HT300 cast iron bed designed for full-part loading, efficient chip evacuation and anti-vibration support; high-temperature stoving varnish finish.
- CNC system: Syntec 22TA standard; FANUC or SIEMENS optionally available for specific control requirements.
- Spindle: Built-in synchronous motor spindle with NSK/NTN P4 bearings, A2-5 nose and oil cooling for continuous torque and low vibration.
- Turret: 12-station servo turret with high rigidity suitable for precision and heavy turning; fast tool changes.
- Guide way: PMI 35 mm roller guide or optional linear guide for heavy loads and accurate feed.
- Ball screw: PMI 3210 ball screws for X/Z (C3), oil-lubricated and cooled, driven by 3.0 kW servo motors.
- Hydraulics & lubrication: Seven Ocean hydraulic station (40 L) and Ishan 2 L lubrication system with circular lubrication for guides and screws.
- Cooling & cleaning: 2V-30 coolant pump, large-capacity tank and multi-stage filtration for tool and workpiece cooling and chip management.
- Electrical: Complete electrical cabinet with safety interlock and heat exchanger; Schneider low-voltage components used.
Options & automation
- SIEMENS 828D or FANUC 0i TF CNC controller (optional).
- Live tooling, C-axis indexing, indexing chuck, hydraulic collets or alternate chucks.
- Automation: robotic arms, gantry robots for loading/unloading, bar feeders, parts catchers, chip conveyors, swing-tray feeding and gantry loading systems.
- Peripherals: air blow, high-pressure coolant, automatic measuring and tool measurement systems, automatic door, oil-mist collector, foot switch, water gun.
Applications
- General machinery, automotive components, precision parts, electronics (3C), refrigeration equipment, aerospace and other industrial turning applications requiring high rigidity and accuracy.
Technical specifications
- Model: MJ0630
- Max. swing diameter over bed: 650 mm
- Max. turning diameter: 320 mm
- Max. turning length: 300 mm
- X axis travel: 185 mm
- Z axis travel: 351 mm
- Tailstock travel: 270 mm
- Tailstock quill travel: 100 mm
- Spindle nose size: A2-5
- Hydraulic chuck size: 6-inch
- Spindle bore diameter: 56 mm
- Max. bar capacity (inner/outer): 45 / 35 mm
- Spindle motor power: 13.4 kW
- Spindle max. speed: 0–5000 r/min
- Spindle rated torque / max. torque: 64 / 120 N·m
- X/Z axis rapid traverse (G0): 20 m/min
- Tool holder quantity (standard): 4 pieces (tool shank 25 mm)
- Boring tool holder ID: φ40 mm
- Optional turret center height: 100 mm (backside)
- Tools quantity (optional): 8 pieces
- X/Z axis repeatability: 0.003 mm
- Hydraulic tank capacity: 40 L
- Machine full loading power: 23 kW
- Dimension (L x W x H): 1985 x 1668 x 1988 mm
- Total machine weight: 2980 kg
- Warranty: 18 months
