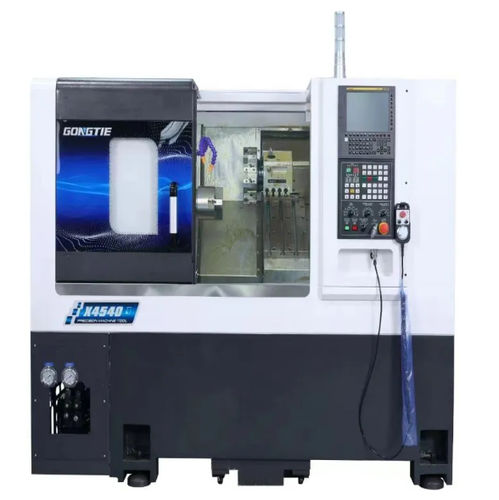

CNC lathe X4540

horizontal2-axisslant bed

The X4540 is a slant-bed gang-tool CNC lathe designed for turning and turn‑milling of small, high‑precision parts. The machine supports multi-tool gang installations and offers optional turret configurations (servo or power), including an optional 90° direct Y-axis for integrated milling operations. It can be integrated with gantry-robot automation for efficient series production.

Key features

• Direct-drive spindle and slant-bed gang-tool structure for stable, precise turning and turn‑milling.
• Capable of standard turning and combined turning‑milling with live tooling support.
• Roller linear guides and precision ball screws for high-accuracy feeding and positioning.
• Stainless-steel inner fence protecting guideways against chips and wear.
• Optional configurations: gang tools, servo turret, power turret, power turret with 90° direct Y-axis.
• Optional integrated automation (gantry robots, part catchers, bar feeders) for high throughput.

Machine components / highlights

• Lathe bed: horizontal slant bed cast in HT300 for rigidity and effective chip evacuation; high-temperature stoving varnish finish.
• CNC system: Syntec 22TA standard; FANUC or SIEMENS optional.
• Spindle: built-in synchronous motor spindle, oil-cooled; A2-5 nose, ø56 mm spindle bore; KOYO/NTN precision bearings.
• Collet & chuck: hydraulic clamping options; collet or chuck depending on process requirements.
• Guides & screws: PMI roller linear guides (PMI 30) and PMI 3210 ball screws for precise axis motion.
• Electrical & drives: Syntec drives, Schneider low-voltage components; control cabinet air conditioning included.
• Hydraulic, lubrication & cooling: Seven Ocean hydraulic, Ishan lubrication, Luikar cooling; coolant and hydraulic tank capacities listed in specs.

Standard configuration (selected items)

• Lathe bed: HT300 cast iron horizontal slant bed (China).
• CNC system: Syntec 22TA (Taiwan).
• Servo motors / axes: Syntec series (Taiwan).
• Main spindle: Gongtie motorized spindle (China).
• Spindle drive motor: Syntec SMH series (Taiwan).
• Spindle encoder: Syntec (Taiwan); spindle bearings: NTN/KOYO (Japan).
• Ball screws: PMI 3210 (Taiwan); linear guides: PMI 30 roller guides (Taiwan).
• Hydraulic system: Seven Ocean (Taiwan); lubrication: Ishan (Taiwan); cooling: Luikar (Taiwan).
• Low-voltage electrics: Schneider (France).

Options

• SIEMENS 828D or FANUC 0i TF CNC controller.
• Automation accessories: arm robots, gantry robots, bar feeders, parts catchers, chip conveyors.
• Process options: live tooling, C-axis indexing, indexing chuck, automatic tool measurement, high-pressure coolant, oil-mist collector, automatic doors, hydraulic collets/chucks, and more.

Applications

• General machinery
• Automotive industry
• Textile machinery components
• Electronic equipment components
• Precision machinery
• Cooling refrigeration components
• 3C industry parts
• Aerospace components

Technical specifications

• Model: X4540
• Max. swing diameter over bed: 600 mm
• Max. turning diameter: 320 mm
• Max. turning length: 400 mm
• Center height (spindle to tool table): 88 mm
• Center height (spindle to ground): 1120 mm
• X axis travel: 430 mm
• Z axis travel: 435 mm
• Spindle nose size: A2-5
• Hydraulic clamping (collet): 45 mm
• Spindle bore diameter: 56 mm
• Max. bar capacity (inner/outer): 45 / 35 mm
• Spindle motor power: 11.7 kW
• Spindle speed (rated / max): 0 ~ 5000 r/min
• Spindle torque (rated / max): 56 / 159 N·m
• X/Z axis rapid traverse (G0): 20 m/min
• Tool holder quantity: 5
• Tool shank size: 20 mm
• Boring tool holder: ø25 mm
• Axis repeatability: 0.003 mm
• Cooling tank capacity: 84 L
• Hydraulic tank capacity: 40 L
• Machine full loading power: 20 kW
• Dimensions (L x W x H): 2025 x 1755 x 2170 mm
• Total machine weight: 2538 kg
• Warranty: 18 months
