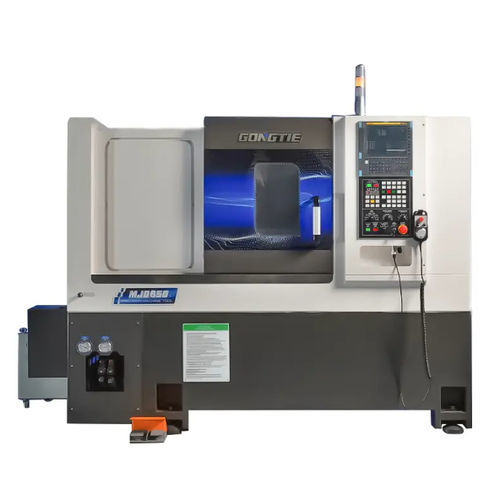

CNC lathe MJ0650horizontal2-axisslant bed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- horizontal
- Number of axes
- 2-axis
- Structure
- slant bed
- Number of spindles
- 2-spindle
- Spindle mount
- A2-5
- Number of tool stations
- 12 tools
- Drive system
- servo-driven, direct-drive
- Applications
- for automotive applications, for aerospace applications, for production
- Performance
- high-precision, high-performance, high-rigidity
- Options and accessories
- automated loading/unloading, with gantry loader, with gantry robot, with integrated bar feeder
- Diameter
650 mm
(25.59 in)- Spindle speed
Min.: 0 rpm
(0 rad.min-1)Max.: 5,000 rpm
(31,415.927 rad.min-1)- Maximum part length
500 mm
(20 in)- Maximum cutting diameter
320 mm
(13 in)- Maximum cutting length
Min.: 500 mm
(20 in)Max.: 500 mm
(20 in)- Bar capacity
35 mm, 45 mm
(1 in, 2 in)- Axe X
185 mm
(7 in)- Axe Z
556 mm
(22 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
13.4 kW
(18.2 hp)- Maximum torque
64 Nm, 120 Nm
(47 ft.lb, 89 ft.lb)- Coolant capacity
40 l
(11 gal)- Overall lenght
2,261 mm
(89 in)- Overall width
1,668 mm
(66 in)- Overall height
1,988 mm
(78 in)- Weight
3,180 kg
(7,011 lb)
Description
The MJ0650 is a high-precision slant-bed CNC turning lathe built for rigidity, stability and flexible configuration, offering options for multi-step processing with a servo turret and optional sub-spindle or programmable hydraulic tailstock.
Key features
Standard configuration
Available options & accessories
Automation
Applications
Characteristics / Technical specifications
Key features
- High-performance direct-drive spindle for consistent torque, low vibration and fast acceleration/deceleration.
- Customized high-rigidity 12-station servo turret suitable for heavy turning and rapid tool changes.
- High-rigidity box guide way carriage (linear guide optional) for stable, accurate machining.
- Hydraulic tailstock standard; optional programmable hydraulic tailstock or sub-spindle to enable two-step (finish) processing in a single machine.
- Design focused on rigidity and stability (direct-drive spindle + box guide way carriage) to ensure precise, repeatable results.
Standard configuration
- Lathe bed: Horizontal slant bed, HT300 casted iron (China) — Qty: 1
- CNC system: Syntec (Taiwan) — Qty: 1
- Servo Motor: Syntec (Taiwan) — Qty: 1
- Main spindle: Gongtie motorized spindle (China) — Qty: 1
- Spindle driven motor: Syntec SMH Series (Taiwan) — Qty: 1
- Spindle coder: Syntec (Taiwan) — Qty: 1
- Spindle bearing: NTN (Japan) — Qty: 5
- Spindle coolant system: Xinfu (China) — Qty: 1
- Screw: PMI 3210 ball screw (Taiwan) — Qty: 2
- Guide way: PMI 35 linear guide way (Taiwan) — Qty: 4
- Axes motor: Syntec AM11 (Taiwan) — Qty: 2
- Hydraulic system: Seven Ocean (Taiwan) — Qty: 1
- Lubrication system: Ishan (Taiwan) — Qty: 1
- Cooling system: Luikar (Taiwan) — Qty: 1
- Tool box: Gongtie (China) — Qty: 1
- Low pressure electrics: Schneider (France) — Qty: 1
Available options & accessories
- Optional CNC controllers: SIEMENS 828D or FANUC 0i TF.
- Common optional accessories: air blowing, live tooling, arm robot, C-axis (index), indexing chuck, bar feeder, gantry robot loading & unloading, cutter, parts catcher, automatic measuring system, automatic door, chips conveyor, auto radius compensation, air gun, oil mist collector, high-pressure coolant system, water gun, tool measurement system, hydraulic collet or chuck, foot switch, door lock switch.
Automation
- Gantry systems
- Robot handling systems
- Gantry loading systems
Applications
- General machinery
- Automotive industry
- Textile machinery
- Electronic equipment
- Precision machinery
- Cooling industry
- 3C industrial parts processing (consumer electronics components)
- Aerospace
Characteristics / Technical specifications
- Max. Swing Diameter Over Bed (mm): 650
- Max. Turning Diameter (mm): 320
- Max. Turning Length (mm): 500
- X Axis Travel (mm): 185
- Z Axis Travel (mm): 556
- Tailstock Travel (mm): 470
- Tailstock Quill Travel (mm): 100
- Spindle Nose Size: A2-5
- Hydraulic Chuck Size (inch): 6
- Spindle Bore Diameter (mm): 56
- Max. Bar Capacity (inner/outer) (mm): 45/35
- Spindle Motor Power (kW): 13.4
- Spindle Max. Speed (r/min): 0-5000
- Spindle Rated Torque / Max. Torque (N·m): 64 / 120
- X/Z Axis Rapid Traverse (G0) (m/min): 20
- Tool Holder Quantity (pieces): 4
- Tool Shank Size (mm): 25
- Boring Tool Holder ID (mm): φ40
- Optional Turret Center Height: 100 (backside)
- Tools Quantity (pieces): 8
- X/Z Axis Repeatability (mm): 0.003
- Hydraulic Tank Capacity (L): 40
- Machine Full Loading Power (kW): 23
- Dimension (L x W x H) (mm): 2261 x 1668 x 1988
- Total Machine Weight (kg): 3180
- Warranty (months): 18
- MOQ (sets): 1
