CNC lathe P3538

horizontal2-axisflatbed

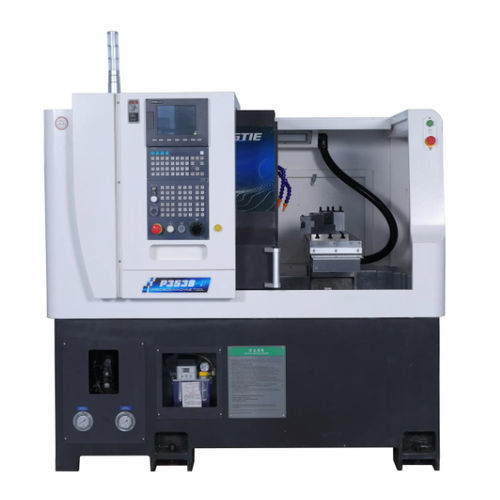

The P3538 is a high-precision flat-bed CNC lathe designed for heavy cutting and multi-process turning-milling using gang tools. It integrates a motorized spindle, Syntec CNC control and premium imported components to deliver stable, accurate production for small to medium parts.

Summary / Key features

• HT300 cast machine body for rigidity and vibration damping.
• Syntec 22TA CNC system (FANUC or SIEMENS optional).
• Built-in direct motorized synchronous spindle with oil cooler for high speed, constant torque and anti-vibration performance.
• Hydraulic collet/chuck clamping and gang tool holders to support turning and milling operations.
• PMI ball screws and linear guide ways for precise feeding and positioning.
• Quality auxiliary systems: hydraulic station (Seven Ocean), lubrication and cooling systems, Schneider electrical components.
• Full inner fence and fully enclosed machine cover for safety and chip control.

Machine parts (detailed)

• Lathe Bed: Flat-bed type for horizontal machines. Material: integrated cast HT300 iron for high rigidity. High-temperature stoving varnish painting. Designed for full-part loading, easy chip conveying, stable support and anti-vibration.
• CNC System: Syntec 22TA CNC, all-in-one driving, easy to program and operate. FANUC or SIEMENS systems available as options.
• Spindle: Built-in synchronous motor spindle (motorized spindle). Spindle bearings: P4 grade (NTN/KOYO). Spindle nose A2-5, spindle bore 48mm. Oil-cooling provides constant torque, low vibration and fast ramp-up/down.
• Collet & Chuck: Hydraulic collet or chuck optional according to processing method. Hydraulic clamping for secure workpiece hold. Gang tool holders and live tools can work together to perform turning-milling processing. Tooling layouts customizable on request.
• Guide Way & Screw: PMI (Taiwan) high-precision linear guideways and 2510 ball screws (C3 grade) with φ25mm shaft and 8mm lead. Driven by AM3 motors for precise feeding and positioning.
• Electric box: Syntec drives for machine motion; Schneider low-voltage electrical components; electric cabinet air conditioning to cool the electric box. FANUC or SIEMENS optional.
• Hydraulic System: Seven Ocean hydraulic station (Taiwan) with hydraulic tank for clamping, tailstock and chuck operations.
• Lubrication & Cooling: 2L lubrication system (Ishan) for guide ways and screws with oil separator, water lifting pump for coolant and chip flushing, and a cooling tank for cyclic coolant supply. Spindle coolant system provided (Xinfu).

Options & automation

• Available optional accessories: live tool, C-axis indexing, indexing chuck, bar feeder, arm robot, gantry robot loading/unloading, parts catcher, chips conveyor, automatic measuring system, tool measurement system, high-pressure coolant, oil mist collector, door lock switch, foot switch, automatic door, auto radius compensation, and more.

Caractéristiques / Spécifications techniques

• Model: P3538
• Max. Swing Diameter Over Bed: 360 mm
• Max. Turning Diameter: 100 mm
• Max. Turning Length: 100 mm
• Center Height from Spindle to Tool Table: 50 mm
• Center Height from Spindle to Ground: ≈1080 mm
• X Axis Travel: 320 mm
• Z Axis Travel: 415 mm
• Spindle Nose Size: A2-5
• Hydraulic Clamping (collet): 35 (collet size)
• Spindle Bore Diameter: 48 mm
• Max. Bar Capacity (inner/outer): 35 / 25 mm
• Spindle Motor Power: 8.5 kW
• Spindle Max Speed: 6000 r/min
• Spindle Max Torque: 84 N·m
• X/Z Axis Rapid Traverse (G0): 20 m/min
• Tool Holder Quantity: 5 pcs (gang tool holders)
• Tool Shank Size: 16 mm
• Boring Tool Holder: φ20 mm
• X/Z Axis Repeatability: 0.003 mm
• Cooling Tank Capacity: 42 L
• Hydraulic Tank Capacity: 20 L
• Machine Full Loading Power: 12 kW
• Dimension (L x W x H): 1795 x 1428 x 1700 mm
• Total Machine Weight: 1705 kg
• Warranty: 18 months
