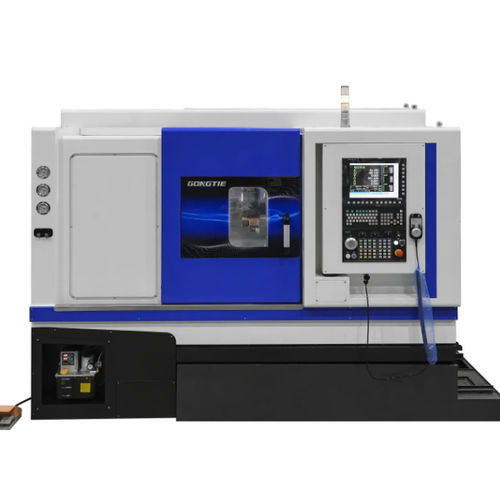

CNC milling-turning center MDX0850-S

horizontal3-axisinclined bed

The MDX0850-S is a horizontal slant-bed precision double-spindle turn-mill CNC designed for integrated heavy cutting and multi-process machining (turning, milling, drilling, tapping). It pairs an HT300 cast-iron slant bed with high-power direct-drive electric spindles, PMI ball screws and roller guideways to enable high-speed, high-accuracy production.

Key features

• HT300 integrated casted-iron horizontal slant bed for high stiffness, rigidity and vibration damping, optimized for heavy-load cutting.
• SYNTEC 22TB CNC system with 15-inch display supporting diverse processing applications and user-friendly operation.
• Built-in direct-drive electric spindles (main and sub): constant torque, high rigidity, anti-vibration design and precise positioning; NSK bearings with 3+2 structure, P4 grade.
• PMI 3210/4210 C3 grade ball screws and PMI 35 P grade roller guideways for precise feed, positioning and heavy-load capability.
• 12-station BMT55 power turret with interpolation Y axis for combined turning and milling and heavy cutting operations.
• Hydraulic components: hydraulic hollow 3-jaw chuck and Seven Ocean hydraulic station; integrated lubrication and cooling systems (4 L oil lubrication, lifting pump and 120 L tank).
• Full closed machine cover and stainless-steel inner fence for containment and safety; Schneider low-voltage electrical components for control and protection.

Standard configuration (components / brands / origin / qty)

• Machine body: Horizontal slant bed HT300 casted iron — China — Qty: 1
• CNC system: SYNTEC 22TB — Taiwan — Qty: 1
• Spindle: Built-in direct-drive electric spindle (main/sub) — China — Qty: 1
• X Screw: PMI 3210 C3 grade ball screw — Taiwan — Qty: 1
• X/Z1/Z2 axis motor: AM15 (3.1 kW, 15 N.m torque) — Taiwan — Qty: 1
• Z Screw / subspindle: PMI 4210 C3 grade ball screw — Taiwan — Qty: 1
• Live tool motor: AM18 (3.9 kW, 18 N.m torque) — Taiwan — Qty: 1
• Guide way: PMI 35 P grade roller guide way — Taiwan — Qty: 4
• Chuck: Hydraulic hollow 8/6 chuck with 3 jaws — Taiwan — Qty: 1
• Turret: 12-stations BMT55 power turret — Taiwan — Qty: 1
• Hydraulic system: Seven Ocean (hydraulic station) — Taiwan — Qty: 1
• Lubrication system: Ishan (4 L capacity) — Taiwan — Qty: 1
• Cooling system: Luikar 2V-60 (lifting pump) — China — Qty: 1
• Water tank: 120 L — China — Qty: 1
• Low pressure electrics: Schneider — France — Qty: 1
• Working lights and warning lights — China — Qty: 2
• Inner fence: Stainless steel full closed inner fence — China — Qty: 1
• Full closed machine cover — China — Qty: 1
• Tool box: Machine tools kit in box — China — Qty: 1

Optional accessories / options

• Fanuc or Siemens CNC system
• Part catcher
• Bar feeder
• Chip conveyor
• Gantry robot, gantry loading systems or robot handling systems
• Air blowing, C-axis indexing, indexing chuck, live tooling, cutters, parts catcher, automatic measuring system, automatic door, oil mist collector, high-pressure coolant system, tool measurement system, hydraulic collet or chuck, foot switch, door lock switch, etc.

Technical specifications

• Model: MDX0850-S
• Max. swing diameter over bed: Φ520 mm
• Max. machining diameter: Φ400 mm
• Max. machining length: 500 mm
• X axis max. movement: 225 mm
• Z axis max. movement: 500 mm
• Y axis max. movement: +/-50 mm
• Main spindle nose: A2-6
• Main spindle bore: Φ66 mm
• Main bar capacity (inner): 50 mm
• Main spindle power: 15 kW
• Main spindle speed range: 0~4500 rpm
• Main spindle torque: 91/260 N.m
• Sub spindle nose: A2-5
• Sub spindle bore: Φ56 mm
• Max. bar capacity (inner) (sub): 45 mm
• Sub spindle power: 13.4 kW
• Sub spindle speed range: 0~4500 rpm
• Sub spindle torque: 68/120 N.m
• Hydraulic chuck size: 6 inch
• Turret type: BMT55-12 (power turret)
• Turret stations: 12
• Tool shank size: 25 mm
• Boring toolholder ID: Φ40 mm
• X/Z axis rapid traverse: 20 m/min
• X/Z axis repeatability accuracy: 0.005 mm
• Hydraulic tank capacity: 40 L
• Hydraulic station motor power: 1.5 kW
• Oil lubrication capacity: 4 L
• Full machine power: 33 kW
• Machine overall dimension (L x W x H): 2600 x 2280 x 2180 mm
• Total machine weight: 6000 KG
• Warranty: 12 months
