CNC milling-turning center MD0842

horizontal2-axisinclined bed

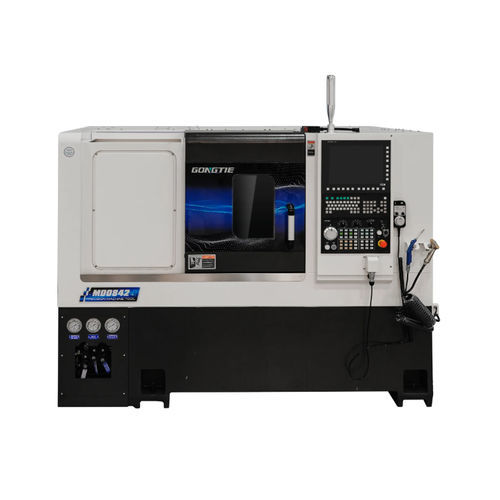

The MD0842 is a slant-bed CNC turn-mill center with a directly driven synchronous spindle and a 12-station BMT55 power turret, suitable for integrated turning and milling and configurable for two-step processing and automation.

Key features

• Directly driven synchronous spindle providing constant torque, wide speed range, low vibration and high positioning accuracy; NTN bearings (3+2 structure, P4 grade).
• 12-station BMT55 power turret for heavy cutting and multi-tool sequences.
• 8-inch hydraulic hollow chuck (3-jaw) with hardened and ground mounting surface for high clamping force and accuracy.
• Hydraulic tailstock with MT4 quill; programmable hydraulic tailstock optional.
• Cooling and cleaning system with Luikar 2V-30 pump and large-capacity tank with filtration.
• PMI 3210 ball screws and PMI 35 mm roller linear guide ways for X/Z axes; Syntec servo and axis motors.

Standard configuration

• Slant-bed lathe bed: HT300 cast iron, integrally cast.
• CNC system: Syntec 22TA.
• Main spindle: Gongtie motorized synchronous spindle with Syntec SMH spindle drive and Syntec spindle encoder.
• Spindle bearings: NTN.
• Hydraulic chuck: 8-inch hollow chuck, clamping diameter 17–210 mm, max 140 kN, up to 5000 rpm.
• Ball screws: PMI 3210 (C3) for X/Z axes.
• Guide ways: PMI 35 mm roller linear guides.
• Hydraulic system: Seven Ocean with 40 L reservoir.
• Coolant pump: Luikar 2V-30; lubrication: Ishan 2L automatic oil lubrication.
• Electrical components: Schneider low-voltage components; safety lock OMRON.
• Toolbox: Gongtie; Bar feeder: PRO Ray VS65 (optional as configured).

Optional configuration

• FANUC or SIEMENS CNC system.
• THK guide ways and ball screws as higher-spec alternative.
• Sub-spindle for full two-step/subsequent operations.
• Bar feeder, chip conveyor, gantry robot, parts catcher and custom automation accessories.

Available options / accessories

• Air blowing
• Live tooling (driven tools)
• Robot arm / gantry robot (loading & unloading)
• C-axis indexing / indexing chuck
• Bar feeder
• Parts catcher
• Automatic measuring system
• Automatic door and door lock switch
• Chip conveyor
• Auto radius compensation / tool measurement system
• Air gun / water gun / high-pressure coolant system
• Oil mist collector
• Hydraulic collet or chuck
• Foot switch

Automation solutions

• Gantry systems
• Robot handling systems
• Gantry loading systems

Applications

• General machinery
• Automotive industry
• Textile machinery
• Electronic equipment
• Precision machinery
• Cooling industry
• 3C industrial parts processing
• Aerospace

Technical specifications

• Model: MD0842
• Max. swing diameter over bed: 600 mm
• Max. turning diameter: 320 mm
• Max. turning length: 420 mm
• X axis travel: 185 mm
• Z axis travel: 556 mm
• Tailstock travel: 470 mm
• Tailstock quill travel: 100 mm
• Live tooling motor power / Torque: 3.1 kW / 15 N·m
• Spindle nose: A2-6
• Hydraulic chuck size: 8 inch
• Spindle bore diameter: 66 mm
• Max. bar capacity (inner/outer): 50 / 40 mm
• Spindle motor power: 15 kW
• Spindle max. speed: 0–4000 rpm
• Spindle rated torque / max. torque: 95.5 / 270 N·m
• X/Z rapid traverse (G0): 20 m/min
• Tool holder quantity (per turret): 6 (turret related) / Turret stations: 12
• Tool shank size: 25 mm
• Boring tool holder ID: φ40 mm
• X/Z axis repeatability: 0.005 mm
• Hydraulic tank capacity: 40 L
• Machine full loading power: 24 kW
• Dimensions (L x W x H): 2262 x 1668 x 1988 mm
• Total machine weight: 3410 kg
• Warranty: 18 months
• MOQ: 1 set
