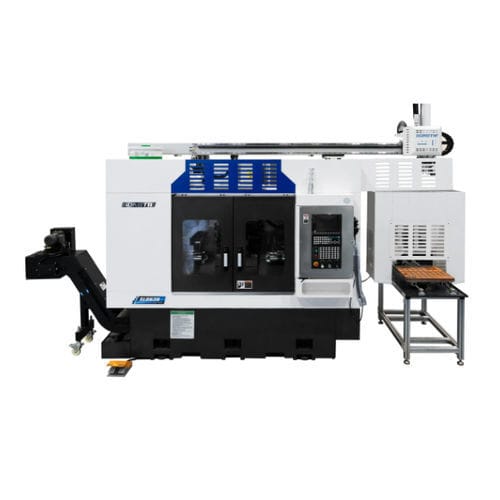

CNC milling-turning center SL0636

horizontal6-axisinclined bed

The SL0636 is a 45° slant-bed CNC turn‑mill center with double spindles and double gang live tools, enabling precision turning, milling, drilling and tapping in a single clamping. It is engineered for efficient production of finished parts and supports optional automation (gantry, robots, bar feeders, chip conveyors).

Key features

• Double spindle and sub-spindle docking with antegrated live tools for combined turning, milling, drilling and tapping.
• Single‑clamp machining to deliver finished parts in one setup, reducing handling and cycle time.
• Integral HT300 cast iron 45° slant bed for rigidity and vibration damping; full enclosed cover and stainless inner fence.
• Optional automation solutions: gantry systems, robot handling, bar feeders, part catchers and chip conveyors.

Machine parts / Components

• Machine body: Integrated HT300 45° slant bed with high-temperature stoving varnish for corrosion resistance and rigidity.
• CNC system: SYNTEC 22TA (serial communication, 4G memory); supports multi-axis programming and servo drives.
• Spindle / Sub-spindle: Electric direct-drive spindles with high-rigidity NTN P4 bearings for precision and low vibration.
• Chuck: Hydraulic hollow 3-jaw chuck (6"+6" or 8" optional), hardened and ground contact surfaces, direct lubrication.
• Turret: Live tools available (single or dual head; radial/axial; Y-axis optional).
• Guide way: PMI roller guide ways for heavy loads and high rigidity.
• Ball screw: PMI C3 (3210) ball screws with oil lubrication and cooling for fast feeds and long life.
• Hydraulic station: Seven Ocean 40L hydraulic unit supplying stable power for cylinders, chuck and tailstock.
• Lubrication: Ishan 2L automatic lubrication system supplied filled before delivery.
• Cooling & fluids: Luikar cooling system, 120L tank, oil‑water separation and dual pump tank for cooling/cleaning.
• Electricals: Schneider low-voltage components; electrical cabinet with heat exchanger and optional air conditioning.
• Optional peripherals: oil mist collector, Renishaw tool setter, thermal compensation, parts catcher, voltage regulator.

Options

• Alternative CNC: Fanuc or Siemens available.
• Automation: Gantry robots, articulated robots, gantry loading, bar feeders, swing‑tray feeding.
• Material handling & finishing: Part catcher, chip conveyor, bar feeder.
• Process & safety: Automatic measuring, tool setting systems, automatic door and lock, foot switch, high‑pressure coolant, central water supply.

Technical specifications

• Model: SL0636
• Max. swing diameter (mm): φ500
• Max. turning diameter on a skateboard (mm): φ160
• Max. turning diameter (mm): φ360 (disc)
• Max. distance between two chucks (mm): 700
• Max. processing length with 6" chuck (mm): 125 (single-track)
• X1 / X2 axis (diameter stroke mm): 1000 / 1000
• Z1 / Z2 axis (stroke mm): 350 / 350
• Z3 axis (sub-spindle) max travel (mm): /
• Controlled axes: 6 Axis (X1 + X2 + Z1 + Z2 + C1 + C2)
• X1 / X2 ball screw: 3210-C3
• X1 / X2 axis motor torque: AM8
• Z1 / Z2 ball screw: 3210-C3
• Recommended Z1 / Z2 motor torque: AM11
• Bed / Body: 45° integral casting bed
• Spindle max speed (rpm): 50 - 5000
• Spindle & sub-spindle through hole (mm): φ56
• Spindle nose: A2-5
• Electric spindle power (kW): 13.4
• Optional spindle types: Type 0640 / Type L46

Standard configuration (selected items)

• Machine body: Horizontal slant bed HT300 cast iron — China — Qty: 1
• CNC system: SYNTEC 22TB (Taiwan) — Qty: 1
• Spindle: 13.4 kW electric spindle (China) — Qty: 1
• Sub-spindle: 13.4 kW electric spindle (China) — Qty: 1
• X/Z screw: PMI C3 ball screw (Taiwan)
• X/Z guide way: PMI roller guide way (Taiwan)
• Chuck: Hydraulic hollow 3-jaw (6/8 inch optional) — Taiwan
• Live tools: Single/dual head radial/axial (optional)
• Hydraulic system: Seven Ocean 40L (Taiwan)
• Lubrication: Ishan 2L (Taiwan)
• Cooling system: Luikar 30m lift (China)
• Water tank: 120L (China)
• Low voltage electrics: Schneider (France)
• Lights: Work and warning lights — Qty: 2
