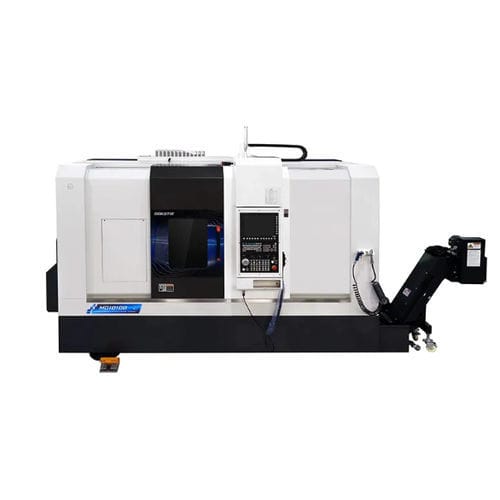

CNC milling-turning center MD10100
horizontal2-axisinclined bed

CNC milling-turning center - MD10100 - Ningbo GongTie Precision Machinery Co.,LTD - horizontal / 2-axis / inclined bed
CNC milling-turning center - MD10100 - Ningbo GongTie Precision Machinery Co.,LTD - horizontal / 2-axis / inclined bed
CNC milling-turning center - MD10100 - Ningbo GongTie Precision Machinery Co.,LTD - horizontal / 2-axis / inclined bed - image - 2
CNC milling-turning center - MD10100 - Ningbo GongTie Precision Machinery Co.,LTD - horizontal / 2-axis / inclined bed - image - 3
CNC milling-turning center - MD10100 - Ningbo GongTie Precision Machinery Co.,LTD - horizontal / 2-axis / inclined bed - image - 4
CNC milling-turning center - MD10100 - Ningbo GongTie Precision Machinery Co.,LTD - horizontal / 2-axis / inclined bed - image - 5
Add to favorites
Compare this product

Characteristics

Control type
CNC
Type
horizontal
Number of axes
2-axis
Structure
inclined bed
Other characteristics
with turret, precision, Y-axis, with automated loading, with gantry robot, with integrated bar feeder
Diameter

600 mm
(23.62 in)

X travel

185 mm
(7.28 in)

Z travel

556 mm
(21.89 in)

Machine weight

3,310 kg
(7,297.3 lb)

Spindle power

13.4 kW
(18.22 hp)

Spindle speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 5,000 rpm
(31,415.927 rad.min-1)

Description

MD0642 overview
  • MD0642 is a slant‑bed CNC turn‑mill machine engineered for two‑stage combined turning and milling with a 12‑station power turret and optional sub‑spindle for automated production lines.
  • Built for industrial heavy cutting with HT300 cast iron bed and full enclosure for chip control and operator safety.


Key features
  • Direct‑drive synchronous spindle with oil cooler and high‑precision bearings for constant torque, reduced vibration and accurate positioning.
  • Syntec 22TA CNC controller standard (Fanuc or Siemens optional) for multi‑operation programming and HMI efficiency.
  • 12‑station BMT55 power turret (servo‑driven) suitable for heavy turning and milling; Y‑axis option available.
  • Hydraulic hollow 6" 3‑jaw chuck and hydraulic tailstock (MT4 quill) for bar work and stable clamping.
  • Box‑way/roller guideways and X/Z ball screws for high stiffness, fast feeds and repeatable positioning.
  • Integrated lubrication, oil cooler, coolant pump and filtration for stable machining and long component life.


Components / assemblies
  • Lathe bed: HT300 cast iron slant bed with high‑temperature stoving varnish for rigidity and corrosion resistance.
  • CNC system: Syntec 22TA (standard); Fanuc or Siemens available as option.
  • Spindle: Built‑in direct‑drive synchronous spindle with oil cooling, high‑precision bearings (NTN/NSK), spindle nose A2‑5, spindle bore Ø56 mm.
  • Chuck: Hydraulic hollow 6" 3‑jaw chuck with hardened and ground contact surfaces and direct lubrication.
  • Turret: BMT55 12‑station power turret for heavy duty turning/milling.
  • Guideways & screws: PMI roller guideways and PMI X/Z ball screws with oil lubrication and cooling.
  • Cooling & filtration: Luikar 2V‑30 lift pump, large coolant tank and filtration system.
  • Electrical cabinet: Full low‑voltage components (Schneider), safety interlock and internal heat exchanger.


Standard configuration (selected items)
  • Machine body: HT300 cast iron slant bed.
  • CNC system: Syntec 22TA (Taiwan).
  • Spindle: Built‑in direct‑drive synchronous spindle with oil cooler.
  • Ball screws: X/Z ball screws (PMI).
  • X/Z axis motors: Syntec (AM series) servomotors.
  • Spindle bearings: NTN (Japan).
  • Hydraulic system: Seven Ocean hydraulic station (40 L).
  • Lubrication system: Ishan oil lubrication (2 L).
  • Electrical components: Schneider low‑voltage parts.
  • Full enclosed cover and stainless inner fence for cleanliness.


Optional configuration
  • Fanuc or Siemens CNC systems.
  • Part catcher or parts conveyor.
  • Bar feeder and automatic bar loading.
  • Chip conveyor and advanced filtration.
  • Gantry robot, articulated robot or other automation integrations.


Technical specifications
  • Model: MD0642
  • Max. swing diameter over bed: Ø650 mm
  • Max. machining diameter: Ø320 mm
  • Max. machining length: 420 mm
  • X axis travel: 185 mm
  • Z axis travel: 556 mm
  • Tailstock travel: 470 mm
  • Tailstock quill travel: 100 mm
  • Live‑tool power / torque: 3.1 kW / 15 N·m
  • Spindle nose: A2‑5
  • Spindle bore: Ø56 mm
  • Bar capacity (int./ext.): 45 / 35 mm
  • Spindle motor power: 13.4 kW
  • Spindle max. speed: 0–5000 rpm
  • Spindle torque (nom./max.): 64–120 N·m
  • Turret: BMT55, 12 stations
  • X/Z rapid traverse: 20 m/min
  • X/Z repeatability: 0.003 mm
  • Hydraulic tank capacity: 40 L
  • Total machine power: 24 kW
  • Machine dimensions (L×W×H): 2262 × 1668 × 1988 mm
  • Total weight: 3310 kg
  • Warranty: 18 months
  • MOQ: 1 set
