CNC milling-turning center MD0642horizontal2-axisinclined bed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Type
- horizontal
- Number of axes
- 2-axis
- Structure
- inclined bed
- Other characteristics
- with turret, automation, hydraulic, large-chuck, with gantry robot, with integrated bar feeder
- Diameter
650 mm
(25.59 in)- X travel
185 mm
(7.28 in)- Z travel
556 mm
(21.89 in)- Machine weight
3,310 kg
(7,297.3 lb)- Spindle power
13.4 kW
(18.22 hp)- Spindle speed
Min.: 0 rpm
(0 rad.min-1)Max.: 5,000 rpm
(31,415.927 rad.min-1)
Description
Overview
Key features
Machine parts & components (summary)
Standard configuration (selected items)
Optional configuration
Technical specifications

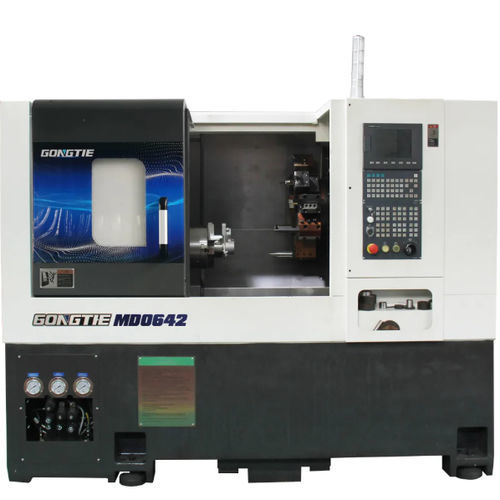

- MD0642 is a slant-bed CNC turning-milling lathe engineered for combined turning and milling with a 12-station BMT55 power turret and optional sub-spindle for two-step processing.
- Machine architecture supports heavy cutting, constant-torque direct-drive spindle, PMI guideways and ball screws, and multiple automation integrations for series production.
Key features
- Direct-drive synchronous spindle with constant torque across speed range; A2-5 spindle nose, 13.4 kW, 0–5000 rpm, oil cooling; NTN/NSK P4 bearings (3+2 structure).
- 12-station BMT55 power turret with Y-axis support — accepts up to 12 servo tools for heavy turning/facing and live tooling.
- 6-inch hydraulic hollow chuck (3-jaw), clamping diameter approx. 17–210 mm, max clamping force ~140 kN.
- Hydraulic tailstock (MT4 quill) with 100 mm quill travel and 470 mm maximum tailstock travel; programmable tailstock optional.
- Syntec 22TA CNC standard (Fanuc or Siemens optional) with Syntec servos; easy programming for two-step sequences.
- Cooling & cleaning: Luikar 2V-30 coolant pump, large tank and filtration system; spindle cooling and chip removal provision.
- Automation ready: bar feeder, gantry/robot integration, chip conveyor, parts catcher and measurement options.
Machine parts & components (summary)
- Bed: integrated slant bed cast HT300 for rigidity and improved chip flow; high-temp stoving varnish finish.
- CNC & drives: Syntec 22TA standard; Syntec servo motors (AM11) and Syntec SMH spindle drive; Fanuc/Siemens optional.
- Spindle: built-in synchronous motor spindle, 13.4 kW, 0–5000 rpm, A2-5 nose, 56 mm bore.
- Chuck: 6" hydraulic hollow chuck with hardened & ground contact surfaces and direct lubrication.
- Turret: BMT55 12-station power turret, supports up to 12 servo-driven tools and Y-axis machining.
- Guides & screws: PMI 35 mm roller linear guideways and PMI 3210 ball screws (X/Z), C3 grade, oil-lubricated and cooled.
- Hydraulic & lubrication: Seven Ocean hydraulic station (40 L) and Ishan 2 L circulating lubrication for guides and screws.
- Electrical: low-voltage components (Schneider) with safety interlock and heat exchanger.
Standard configuration (selected items)
- Slant bed HT300 cast iron.
- Syntec 22TA CNC system; Syntec servos (AM11).
- Gongtie motorized spindle; Syntec SMH spindle drive; Syntec spindle encoder.
- NTN spindle bearings (quantity 5).
- PMI 3210 ball screws (X/Z) and PMI 35 roller guideways.
- Luikar 2V-30 coolant pump; Seven Ocean hydraulic station; Ishan lubrication system; Schneider low-voltage electrics.
Optional configuration
- Fanuc or Siemens CNC system.
- THK guideways and ball screws.
- Sub-spindle for two-step or complete opposite-side machining.
- Bar feeder (e.g. PRO Ray VS65), chip conveyor, gantry/portal robot, parts catcher, live tooling and automatic measuring systems.
Technical specifications
- Model: MD0642
- Max. swing over bed: 650 mm
- Max. turning diameter: 320 mm
- Max. turning length: 420 mm
- X axis travel: 185 mm
- Z axis travel: 556 mm
- Tailstock travel: 470 mm
- Tailstock quill travel: 100 mm
- Live tooling motor: 3.1 kW / 15 N·m
- Spindle nose: A2-5; spindle bore: 56 mm
- Hydraulic chuck: 6 inch; bar capacity (inner/outer): 45 / 35 mm
- Spindle motor power: 13.4 kW; speed: 0–5000 rpm; rated/max torque: 64 – 120 N·m
- X/Z rapid traverse (G0): 20 m/min; X/Z repeatability: 0.003 mm
- Tool holders (standard): 6; turret stations: 12; tool shank: 25 mm
- Hydraulic tank capacity: 40 L; total machine power (full load): 24 kW
- Dimensions (L x W x H): 2262 x 1668 x 1988 mm; weight: 3310 kg
- Warranty: 18 months; MOQ: 1 set
