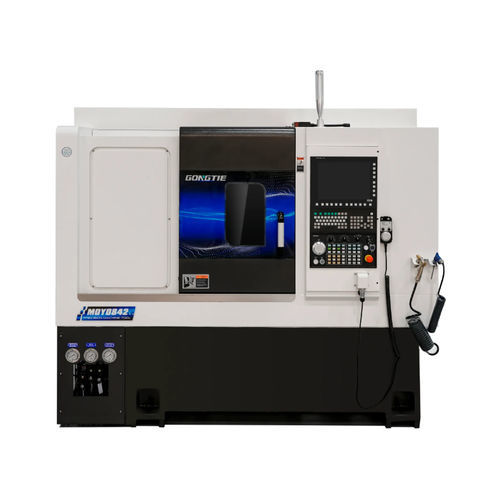

CNC milling-turning center MDY0842

horizontal3-axisinclined bed

Overview
The MDY0842 is a horizontal slant-bed CNC turn-mill center combining a direct-drive synchronous spindle, a motorized 15-station power turret with Y axis and integrated milling capability to perform complex turning-milling operations. It is designed for high rigidity, constant-torque spindle performance and heavy cutting with multiple automation options.

Key features

• Direct-drive synchronous spindle with constant torque, anti-vibration design and high-accuracy positioning (NTN/NSK P4 bearings, 3+2 structure).
• SYNTEC 22TA CNC control standard (FANUC or SIEMENS optional).
• 15-station BMT45 power turret with Y axis for heavy cutting (BMT55-12 optional).
• 8-inch hydraulic hollow chuck (3-jaw) and hydraulic tailstock (MT4); optional high-function programming tailstock.
• Directly coupled 90° Y axis to enable turning-milling functions for complex parts.
• Cooling and cleaning: Luikar 2V-30 pump with large tank and filtration system.
• Multiple automation options: bar feeder, robots, chip conveyor, parts catcher, automatic measuring, etc.

Machine parts / components

• Lathe bed: Integrated HT300 cast iron for high rigidity; high-temperature stoving varnish paint; designed for full-part loading and chip conveyance.
• CNC system: Syntec 22TA standard; FANUC or SIEMENS optional.
• Spindle: Built-in synchronous motor spindle, A2-6 nose, 15 kW motor, oil cooling, constant torque, low vibration; NTN/NSK P4 bearings.
• Chuck: 8" hydraulic hollow chuck, clamping diameter 17–210 mm, max clamping 140 kN, up to 5000 rpm; hardened/ground mating surface; direct lubrication.
• Turret: 15-station BMT45 power turret with direct Y axis; supports heavy loads and fast tool change; up to 15 servo-driven tools.
• Tailstock: Hydraulic tailstock, MT4 taper; sleeve travel 100 mm; max travel 470 mm.
• Guide way: PMI 35 mm roller guide way for heavy loading and high rigidity.
• Ball screw: PMI 3210 (X/Z), C3 grade; driven by 3.0 kW servo; oil lubrication and cooling.
• Electric box: Complete electrical components with safety lock; internal heat exchanger; Schneider low-voltage components.
• Hydraulic station: Seven Ocean, 40 L oil capacity, 1.5 kW motor.
• Lubrication: Ishan 2 L automatic lubrication system for guide ways and screws; circular lubrication filled before delivery.

Standard configuration (selected items)

• Lathe bed: Horizontal slant bed, HT300 cast iron.
• CNC system: Syntec 22TA (Taiwan).
• Servo motors / axis motors: Syntec AM11.
• Main spindle: Gongtie motorized spindle; Syntec SMH spindle drive.
• Spindle bearings: NTN (Japan).
• Ball screw: PMI 3210; guide way: PMI 35 roller linear guide.
• Hydraulic chuck: 8"; coolant pump: Luikar 2V-30.
• Hydraulic system: Seven Ocean; lubrication: Ishan; low-voltage electrics: Schneider; safety lock: OMRON.
• Optional bar feeder: PRO Ray VS65.

Options & automation

• Optional CNC: FANUC or SIEMENS; THK guide way and screw; 6" hydraulic chuck; 12-station power turret; sub-spindle; high-capacity water pump; bar feeder; chip conveyor; gantry robot; parts catcher.
• Application options: live tooling, C-axis indexing, indexing chuck, automatic measuring, automatic door, oil mist collector, tool measurement system, hydraulic collet/chuck, etc.

Applications

• General machinery, automotive components, textile machinery, electronic equipment parts, precision machinery, cooling industry, 3C parts, aerospace precision parts manufacturing.

Technical specifications

• Model: MDY0842
• Max. swing diameter over bed: 650 mm
• Max. turning diameter: 320 mm
• Max. turning length: 420 mm
• X axis travel: 185 mm
• Z axis travel: 556 mm
• Y axis travel: ±45 mm
• Max. tailstock travel: 470 mm
• Tailstock quill travel: 100 mm
• Live tooling motor power / torque: 2.4 kW / 11.5
• Spindle nose size: A2-6
• Hydraulic chuck size: 8 inch
• Spindle bore diameter: 66 mm
• Max. bar capacity (inner/outer): 50 / 40 mm
• Spindle motor power: 15 kW
• Spindle max speed: 0 – 4500 r/min
• Spindle rated torque / max torque: 912 / 260
• X/Z axis rapid traverse (G0): 20 m/min
• Tool holder quantity (basic): 6 (tool shank 32 mm); turret tools quantity: 15
• Boring tool holder ID: φ25 mm
• Optional turret center height: 158 mm (backside)
• X/Z axis repeatability: 0.005 mm
• Hydraulic tank capacity: 40 L
• Machine full loading power: 26 kW
• Dimension (L × W × H): 2262 × 1668 × 2047 mm
• Total machine weight: 3520 kg
• Warranty: 18 months
• MOQ: 1 set
