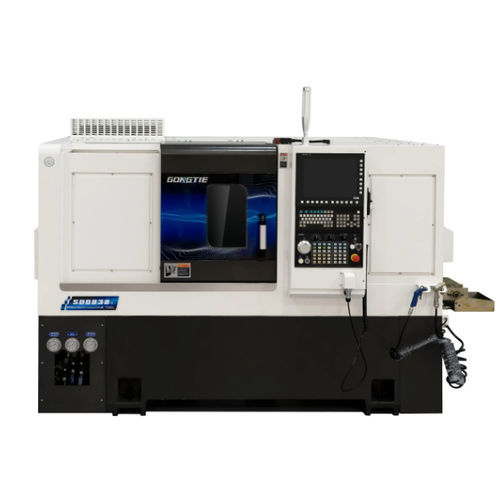

CNC milling-turning center SD0838

horizontal2-axisdouble-spindle

This compact, high-precision double-spindle CNC turn-mill center is engineered for integrated turning, milling, drilling and tapping in a single clamping, improving throughput and accuracy for medium- to high-precision parts.

Key features

• Compact turn-mill center combining turning, milling, drilling and tapping in one machine.
• Single-clamping machining reduces work handling and improves dimensional repeatability.
• Double-spindle layout (main + sub) for simultaneous or sequential operations and higher productivity.
• Main and sub power turrets (BMT series) for fast tool change and heavy turning/milling cuts.
• Optional automation (gantry/robot/bar feeder/part catcher) for semi-automated or lights-out production.

Machine composition and important components

• Machine body: Horizontal slant bed cast from HT300 for rigidity, vibration damping and long service life; design facilitates full-part loading and chip evacuation.
• CNC system: Standard SYNTEC 22TB (serial comm., 4G memory); optional FANUC or SIEMENS; systems support multi-servo integration and direct spindle positioning.
• Spindles: Built-in direct-drive synchronous electric spindles — main 15 kW (A2-6, Ø66 mm bore), sub 8.5 kW (A2-5, Ø56/Ø48 mm bore options). Spindle bearings: NTN P4 grade.
• Chucks: Hydraulic hollow chucks — main 8" 3-jaw, sub 6" 3-jaw. Matching surfaces hardened and ground; direct lubrication for high rigidity and clamping accuracy.
• Turrets: Main turret BMT45 15-station (Y axis optional), sub-turret BMT55 12-station power turret for heavy-duty cutting.
• Guide ways: PMI roller guide ways (X/Z 35 mm) with multiple slide blocks for high load capacity and stable accuracy.
• Ball screws: PMI C3 grade (X/Z 3210/4012) with oil lubrication and cooling; servo-driven for fast, accurate positioning.
• Hydraulic & lubrication: Seven Ocean hydraulic station (40 L) for spindle cylinder, chuck and tailstock; Ishan oil lubrication system (2L/4L) for guideways and screws; Schneider low-voltage electrical components and safety interlocks.
• Cooling & cleaning: Luikar 2V-30 coolant pump with large tank (120 L) and filtration for coolant circulation.

Standard configuration highlights

• Machine body: Horizontal slant bed, HT300 cast iron.
• CNC system (standard): SYNTEC 22TB; optional FANUC or SIEMENS.
• Spindle: Built-in direct-drive 15 kW main spindle.
• Ball screws & motors: PMI ball screws; AM11 motors for axes and live tooling.
• Guide ways: PMI 35 P-grade roller guide ways.
• Chucks & turret: Hydraulic hollow 8" main chuck; 15-station BMT45 main turret; 12-station BMT55 sub turret.
• Hydraulic station: Seven Ocean 40 L, 1.5 kW.
• Cooling tank: 120 L; chip conveyor and filters included as standard or optional depending on selection.

Options

• FANUC or SIEMENS CNC system
• Part catcher, sub-spindle, bar feeder, chip conveyor
• Gantry robot or arm robot for loading/unloading
• Live tooling, C-axis indexing, indexing chuck, automatic measuring and tool presetting systems
• High-pressure coolant, oil-mist collector, automatic door, foot switch, door lock switch

Technical specifications

• Model: SD0838
• Max. swing diameter over bed: Φ650 mm
• Max. machining diameter: Φ320 mm
• Max. machining length: 380 mm
• X axis max. movement: 185 mm
• Z axis max. movement: 556 mm
• Main spindle nose: A2-6; spindle bore: Φ66 mm
• Main spindle power: 15 kW; speed range: 0–4500 rpm; torque: 91/260 N·m
• Max. bar capacity (main inner): 51 mm
• Sub-spindle nose: A2-5; sub-spindle bore: Φ48 mm
• Sub-spindle max. bar capacity (inner): 32 mm; power: 8.5 kW; speed range: 0–6000 rpm; torque: 37/72 N·m
• Turret type: BMT55-12 / BMT45-15 (12 stations on power turret shown)
• Tool shank size: 25 mm; boring toolholder ID: Φ40 mm
• X/Z rapid traverse: 20 m/min
• X/Z axis repeatability accuracy: 0.004 mm
• Hydraulic tank capacity: 40 L; hydraulic station motor power: 1.5 kW
• Oil lubrication capacity: (machine fill/lubrication system as provided)
• Full machine power (total installed): 26 kW
