CNC milling-turning center MDX0840

horizontal3-axisinclined bed

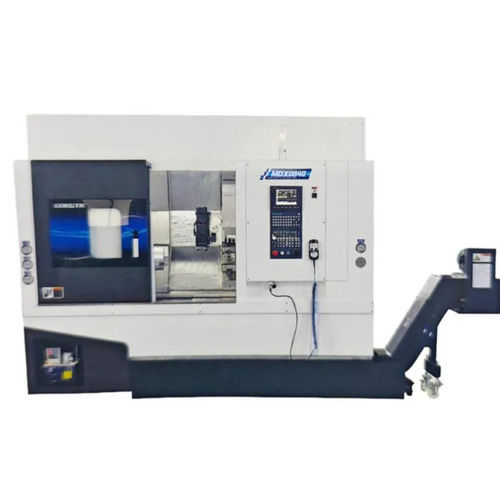

The MDX0840 is a high-precision slant-bed CNC turn-mill machine engineered for heavy cutting and turning-milling operations. It integrates a 12-station BMT55 power turret with interpolation Y axis and a built-in direct-drive electric spindle to provide high rigidity, stability and positioning accuracy.

Machine parts

• Machine Body: HT300 cast iron integrated slant bed offering high rigidity, anti-vibration performance and corrosion resistance.
• CNC System: SYNTEC 22TB controller with multi-machine functions, easy programming and built-in processing features.
• Electric Spindle: Built-in direct-drive electric synchronous spindle designed for rigidity, fast ACC/DEC, low vibration and combined turning & milling capability.
• Chuck: Hydraulic hollow 3-jaw chuck (8-inch) with hardened and ground matching surfaces and direct lubrication for high clamping accuracy and rigidity.
• Turret: 12-station BMT55 power turret with interpolation Y axis designed for fast tool changes and heavy cutting; supports multiple servo tools.
• Tailstock: Hydraulic MT4 tailstock with sleeve stroke and extended movement for supporting long workpieces.
• Ball Screw & Guide Ways: PMI ball screws (3210 C3) and 35P-grade roller guide ways for high-precision feeding and long life.
• Hydraulic Station: Seven Ocean hydraulic station (40L) supplying stable power for spindle cylinder, chuck and tailstock.
• Lubrication System: Automatic 2L lubrication system for guide ways and screws to ensure continuous lubrication.
• Cooling & Cleaning: Water-lifting pump and large-capacity tank with filtration for coolant delivery and workpiece/tool cleaning.
• Electrical: Full low-voltage electrical components (Schneider) with safety interlock and internal heat exchanger.
• Safety & Enclosure: Full closed stainless inner fence and full closed machine cover for safety and containment.

Options & automation

• Air blowing
• Live tool
• Arm robot
• C axis index
• Indexing chuck
• Bar feeder
• Gantry robot loading & unloading
• Cutter
• Parts catcher
• Automatic measuring system
• Automatic door
• Chips conveyor
• Auto radius compensation
• Air gun
• Oil mist collector
• High pressure coolant system
• Water gun
• Door lock switch
• Tool measurement system
• Hydraulic collet or chuck
• Foot switch

Automation & applications

• Automation: Gantry systems, robot handling systems and gantry loading systems (examples shown: gantry robot with stocking system, bar feeder, chips conveyor).
• Applications: general machinery, automobile industry, textile machinery, electronic equipment, precision machinery, cooling industry, 3C industrial parts processing and aerospace.

Technical specifications

• Max. Swing Diameter Over Bed (mm): Φ520
• Max. Machining Diameter (mm): Φ400
• Max. Machining Length (mm): 400
• X Axis Max. Movement (mm): 225
• Z Axis Max. Movement (mm): 420
• Y Axis max. Movement (mm): +/-55
• Tailstock Max. Movement (mm): 470
• Tailstock Sleeve Max. Movement (mm): 100
• Spindle Nose: A2-6
• Spindle Bore (mm): Φ66
• Max. Bar Capacity (inner) (mm): 51
• Spindle Power (kW): 15
• Spindle Speed Range (rpm): 0~4500
• Spindle Torque (N·m): 91/260
• Hydraulic Chuck Size (optional) (inch): 8
• Turret Type: BMT55-12 with interpolation Y
• Turret Stations (pc): 12
• Tool Shank Size (mm): 25
• Boring Toolholder ID (mm): Φ40
• X/Z Axis Rapid Traverse (m/min): 20
• X/Z Axis Repeatability Accuracy (mm): 0.003
• Hydraulic Tank Capacity (L): 40
• Hydraulic Station Motor Power (kW): 1.5
• Oil Lubrication Capacity (L): 2
• Full Machine Power (kW): 28
• Machine Overall Dimension (LxWxH) (mm): 2380x2030x2030
• Total Machine Weight: 4000
• Warranty (Month): 12
