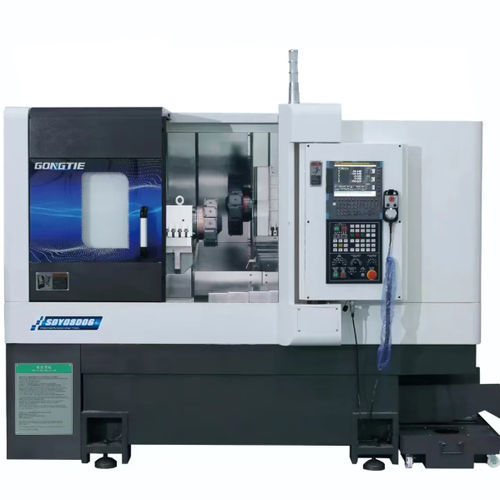

CNC milling-turning center SDX08-A

horizontal3-axisdouble-turret

Overview
The SDX08-A is a high-precision slant-bed CNC turn-mill lathe engineered for combined turning and milling operations with double spindles and double power turrets, designed for heavy cutting, high rigidity and automated production environments.

Key features

• HT300 cast iron machine body with a 45° slant bed and box guide way offering high rigidity and vibration resistance.
• FANUC CNC system (Series 0i-TF Plus) as standard (option for SIEMENS available); easy programming and broad on-board functions for multi-servo coordination.
• In-house built direct-drive synchronous electric spindles for main and sub spindle providing high speed, constant torque, low vibration and accurate positioning.
• High-rigidity spindle bearings and PMI grade ball screws / roller guide ways for precise feeding and positioning.
• BMT45 power turret (main 15-station with Y axis; sub-turret BMT45 12-station) suited for heavy turning-milling processing.
• Integrated hydraulic station, water pump and multi-stage lubrication systems for stable power and long-term operation.
• Schneider low-voltage electrical components, full inner stainless-steel fence and full closed machine cover for safety and durability.

Machine parts / Components

• Lathe Bed: Integrated HT300 cast iron; high-temperature stoving varnish painting; structure designed to load full parts; features easy chip conveying, corrosion resistance, rigidity and anti-vibration.
• CNC System: FANUC Series 0i-TF Plus (serial communication, 4G memory); optional FANUC or SIEMENS available; supports multi-spindle/multi-servo coordination and direct spindle positioning from high-speed rotation.
• Spindle: Built-in synchronous motor spindle with P4 grade bearings; designed for constant torque, low vibration and high precision (main and sub spindle arrangement).
• Chuck: Main spindle 8" 3-jaw chuck and sub-spindle 6" 3-jaw chuck; matching surfaces hardened and ground; direct lubrication for high clamping accuracy.
• Turret: Main BMT45 15-station power turret with Y axis and sub BMT45 12-station turret; designed for fast tool change and heavy turning-milling operations.
• Box guide way (Interpolated Y axis): Ensures machine rigidity and stability under heavy loads; improves machining accuracy and efficiency.
• Guide Way: PMI X/Z 35mm roller guide way with 6 slide blocks for high-load rigidity and precise feeding.
• Ball Screw: PMI C3 grade ball screws for X/Z axes (high speed feeding, high accuracy, oil-lubricated and cooled).
• Cooling & Cleaning: 2V-30 water lifting pump with large-capacity tank and filtration to support cooling/cleaning of workpieces and tools.
• Electric Box: Full electrical components with safety switch lock and internal heat exchanger; Schneider components used.
• Hydraulic Station: Seven Ocean (Taiwan) hydraulic station providing stable power for spindle cylinder, chuck and tailstock.
• Lubrication System: Ishan 2L/4L oil lubrication for guide ways and screws; circular lubrication supplied prior to delivery.

Standard Configuration (as listed on the page)

• Machine body — Horizontal slant bed HT300 casted iron — From: China — Qty: 1
• CNC system — FANUC system Series 0i-TF Plus — From: Japan — Qty: 1
• Spindle — Built-in electro-spindle — From: China — Qty: 1
• X screw — PMI 3210 C3 ball screw — From: Taiwan — Qty: 1
• X axis motor — βiSc-22/2000-B, 2.5 kW, 20 N.m torque — From: Taiwan — Qty: 1
• Z screw — PMI 4012 C3 ball screw — From: Taiwan — Qty: 1
• Z axis motor — βiSc-22/2000-B, 2.5 kW, 20 N.m torque — From: Taiwan — Qty: 1
• X/Z axis Guide way — PMI 35 P grade roller guide way — From: Taiwan — Qty: 4
• Chuck — Hydraulic hollow chuck with 3 jaws — From: Taiwan — Qty: 1
• Turret — BMT45-15 with Y / BMT45-12 — From: China — Qty: 1
• Hydraulic System — Seven Ocean 64L capacity, 2.2 kW — From: Taiwan — Qty: 1
• Lubrication System — Ishan 2/4L capacity — From: Taiwan — Qty: 1
• Cooling system — Luikar 15m lifting — From: Taiwan — Qty: 1
• Water tank — 200L water tank — From: China — Qty: 1
• Low pressure electrics — Schneider — From: France — Qty: 1
• Lights — Working light and warning light — From: China — Qty: 2
• Inner fence — Stainless steel full closed inner fence — From: China — Qty: 1
• Machine cover — Full closed machine cover — From: China — Qty: 1
• Tool box — Machine tools kit in box — From: China — Qty: 1

Optional configuration

• Fanuc or Siemens CNC system
• THK guide way and screw
• Sub spindle
• Bar feeder
• Chip conveyor
• Gantry robot
• Parts stoker

Options (examples listed)

• Air blowing, Live tool, Arm robot
• C axis index, Indexing chuck, Bar feeder
• Gantry robot loading & unloading, Cutter, Parts catcher
• Automatic measuring system, Automatic door, Chips conveyor
• Auto radius compensation, Air gun, Oil mist collector
• Tool measurement system, Hydraulic collet or chuck, Foot switch

Caractéristiques / Spécifications techniques

• Model: SDX08-A
• Max. swing diameter over bed: 320 mm
• Max. machining diameter: 220 mm
• Max. machining length: 200 mm
• X axis max. movement: X1: 250 mm; X2: 320 mm
• Z axis max. movement: (listed same as X in table) X1: 250 mm; X2: 320 mm
• Y axis movement: +/-55 mm
• Live tooling power/torque: 3.1 kW / 15 N.m
• Spindle nose: A2-6 (main) / A2-5 (sub)
• Spindle bore: 66 mm (main) / 56 mm (sub)
• Max. bar capacity (inner): 51 / 45 mm
• Spindle power: 15 kW (main) / 13.4 kW (sub)
• Spindle speed range: 4000 / 5000 rpm
• Spindle torque: 91/260 and 64/120 (as listed)
• Hydraulic chuck size: 8" / 6"
• Servo turret type: BMT45-15 with Y / BMT45-12
• Servo turret stations: 15 / 12
• Tool shank size: 25 mm
• Boring toolholder ID: Φ32 mm
• X/Z axis rapid traverse: X1/X2/Y/Z1/Z2: 15/15/20/20 m/min
• X/Z axis repeatability accuracy: X/Y/Z1/Z2: 0.005 / 0.005 / 0.003 / 0.003 mm
• Hydraulic tank capacity: 64 L
• Hydraulic station motor power: 2.2 kW
• Oil lubrication capacity: 2 / 4 L
• Full machine power: 50 kW
• Machine overall dimension (LxWxH): 2600 x 2280 x 2180 mm
• Total machine weight: ≈6050 kg
• Warranty: 12 months
