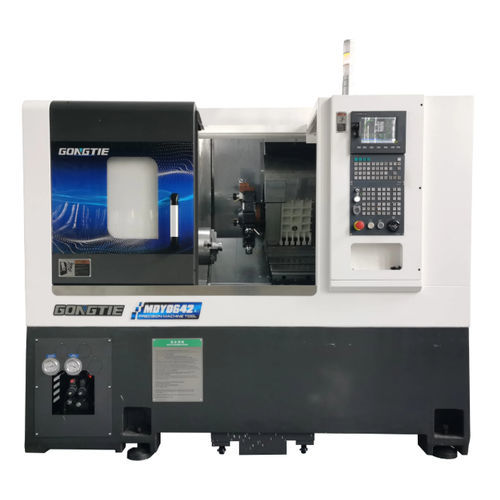

CNC milling-turning center MDY0642

horizontal3-axisinclined bed

The MDY0642 is a horizontal slant‑bed CNC turn‑mill center combining turning and milling with a 15‑station power turret (BMT45) and an interpolating Y axis, designed for heavy cutting, high rigidity and automated production environments.

Key features

• Constant‑torque, directly driven synchronous main spindle for high speed, low vibration and precise positioning.
• Syntec 22TA CNC system (optional: FANUC or SIEMENS) for flexible control and programming.
• 15‑station BMT45 power turret with Y axis for live tooling and heavy turning/milling (optional BMT55‑12).
• 6" hydraulic hollow chuck (3‑jaw) and hydraulic tailstock with MT4 quill for bar and part support.
• Integrated coolant, filtration and Luikar 2V‑30 water‑lifting pump with tank for cooling and chip removal.
• Multiple automation options: gantry/robot, bar feeder, chip conveyor, parts catcher, etc.

Standard configuration / Machine parts

• Lathe bed: Horizontal slant bed, HT300 cast iron, painted and stress relieved; optimized for full‑part loading and chip evacuation.
• CNC system: Syntec 22TB (Taiwan); optional FANUC or SIEMENS.
• Servo motors and axis drives: Syntec series.
• Main spindle: Gongtie motorized spindle A2‑5 with high‑grade bearings (NTN/NSK).
• Spindle drive motor: Syntec SMH series; spindle coder: Syntec.
• Spindle bearings: NTN7018 (Japan); spindle coolant system: Xinfu 15 L.
• Ball screws: PMI 3210 for X/Z; guide ways: PMI 35 mm roller type.
• Axes motors: Syntec AM11; hydraulic system: Seven Ocean SHF series (40 L); hydraulic cylinder: model 646.
• Cooling system: Luikar 15m water lift pump and 68 L tank.
• Chuck: 6" hydraulic hollow chuck (3 jaws); tailstock: MT4 hydraulic tailstock.
• Low‑voltage electrics: Schneider components; lubrication: Ishan 2 L; tool box: Gongtie.

Optional configuration

• FANUC or SIEMENS CNC system
• THK guide ways and ball screws
• 8" hydraulic chuck
• 12‑station power turret
• Sub spindle (sub‑spindle)
• 45 m water pump
• Bar feeder
• Chip conveyor
• Gantry robot / portal loader
• Parts catcher and automatic measurement options

Technical specifications

• Model: MDY0642
• Max. swing diameter over bed: 650 mm
• Max. turning diameter: 320 mm
• Max. turning length: 420 mm
• X axis travel: 185 mm
• Z axis travel: 556 mm
• Y axis travel: ±45 mm
• Max. tailstock travel: 470 mm
• Max. tailstock quill travel: 100 mm
• Live‑tool motor power / torque: 2.4 kW / 11.5 N·m
• Spindle nose: A2‑5
• Hydraulic chuck size: 6 inch
• Spindle bore diameter: 56 mm
• Max. bar capacity (inner/outer): 45 / 35 mm
• Spindle motor power: 13.4 kW
• Spindle max. speed: 0 – 5000 r/min
• Spindle rated torque / max. torque: 64 – 120 N·m
• X/Z axis rapid traverse (G0): 20 m/min
• Tool holder quantity (live‑tools on turret): 6 holders / 15 tools on turret
• Tool shank size: 20 mm
• Boring tool holder ID: φ25 mm
• Optional turret center height (rear): 127 mm
• X/Z axis repeatability: 0.003 mm
• Hydraulic tank capacity: 40 L
• Machine full loading power: 26 kW
• Machine dimensions (L x W x H): 2262 x 1668 x 2047 mm
• Total machine weight: 3420 kg
• Warranty: 18 months
