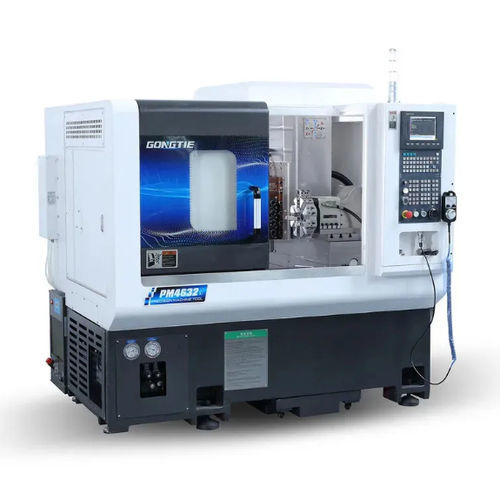

CNC turning-milling center PM4632

horizontal2-axisflatbed

High-precision horizontal flat-bed CNC lathe PM4632 for combined turning and turn-milling operations, designed for heavy cutting, multi-axis machining and automated production.

Key features

• 8-station servo turret with 63 mm center height for flexible tool indexing and fast tool changes.
• 4+4 live (driven) tools and vertical power turret with Y axis (Y travel ±120 mm) for turn-milling and heavy cutting operations.
• Synchronous motorized spindle (11.7 kW) with constant torque and NTN P4 grade bearings for high positioning accuracy and low vibration.
• Syntec 22TB CNC system standard (FANUC or SIEMENS optional) and Syntec servo drives.
• Full enclosure, Schneider low-voltage electrical components, integrated lubrication and cooling systems.

Standard configuration

• Lathe bed: Horizontal flat bed, HT300 cast iron.
• CNC system: Syntec 22TB.
• Servo motors: Syntec.
• Main spindle: Gongtie motorized spindle; spindle drive Syntec SMH series.
• Spindle encoder: Syntec; spindle bearings: KOYO / NTN / NSK (Japan), qty 5 (P4 grade).
• Spindle coolant system: Xinfu.
• Ball screws: PMI 3210 (Taiwan), qty 2; guide ways: PMI 35 roller linear guide ways, qty 4.
• Axis motors: Syntec AM11, qty 2.
• Turret: 8-station servo turret, 63 mm center height; tooling: 4+4 live tools.
• Hydraulic system: Seven Ocean, 40 L tank; lubrication: Ishan; cooling system: Luikar, 68 L tank.
• Tool box: Gongtie; low-voltage electrical parts: Schneider.

Optional configuration

• FANUC or SIEMENS CNC system.
• THK guide ways and screws.
• Sub-spindle.
• Bar feeder and chip conveyor.
• Gantry robot / articulated robot for loading & unloading and part catcher.
• Automatic measuring system, high-pressure coolant, tool measurement, oil mist collector, indexing chuck, foot switch, door lock switch, etc.

Applications

• General machinery production.
• Automotive industry.
• Textile machinery components.
• Electronic equipment parts.
• Precision machinery and components.
• Cooling and HVAC industry parts.
• 3C industrial parts processing (consumer electronics components).
• Aerospace component machining.

Technical specifications

• Model: PM4632.
• Max. swing diameter over bed: 600 mm.
• Max. turning diameter: 260 mm.
• Max. turning length: 150 mm.
• Center height (spindle to tool table): 99 mm.
• Center height (spindle to ground): ≈1050 mm.
• X axis travel: 350 mm; Z axis travel: 280 mm.
• Spindle nose size: A2-5; spindle bore: 56 mm.
• Max. bar capacity (inner/outer): 45 / 35 mm.
• Spindle motor power: 11.7 kW; spindle rated/max speed: 2000 / 5000 r/min.
• Spindle rated/max torque: 64 / 120 N·m.
• X / Z axis rapid traverse (G0): 20 / 20 m/min.
• Axis repeatability: 0.005 mm.
• Tool holder quantity (turret pockets): 4 (main turret) plus 4+4 live tools available.
• Tool shank size: 20 mm; boring tool holder: φ25 mm.
• Optional turret center height (front side): 63 mm.
• Cooling tank capacity: 68 L; hydraulic tank capacity: 40 L.
• Machine full loading power: 23 kW.
• Dimensions (L × W × H): 2000 × 1600 × 1900 mm; Total machine weight: 2500 kg.
• Warranty: 12 months.
