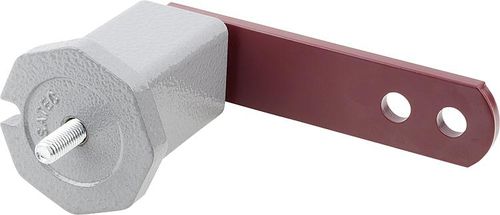

Mechanical workholding component 22281-16
steel

mechanical workholding component
mechanical workholding component
mechanical workholding component
mechanical workholding component
Add to favorites
Compare this product


Characteristics

Type
mechanical
Other characteristics
steel
Clamping force

Min.: 170 N

Max.: 1,880 N

Description

Clamping elements with front fastening Material: Housing sintered steel, from size 5 EN-GJS-400-15. Clamping arm S235JR steel. Buffer natural rubber. Screw steel. Version: Steel parts painted. Screw ISO 4762, grade 8.8, electro zinc-plated. Note: Clamping element with integrated highly elastic, shape-retaining natural rubber buffer. Together with a chain tensioner set, sprocket set or a tension pulley, the clamping element makes a ready-to-install tensioning unit suitable for tensioning chain and belt drives. Suitable for both tensioning directions. The clamping elements are maintenance-free and tear-off resistant. The clamping element is fastened to the machine component with a screw. If necessary, a heavy-duty dowel pin can be inserted in the positioning notch “P” for torque support. Temperature range: -55 °C to +85 °C.
