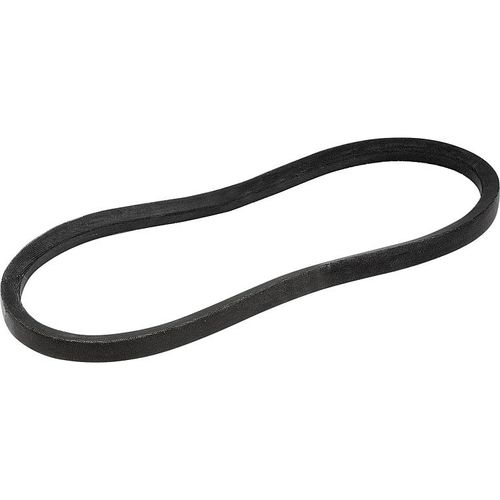

V belt 22071 seriesneoprene®industrialpulley

V belt
V belt
V belt
Add to favorites
Compare this product
indicative price

Characteristics

Type
V
Material
neoprene®
Application
industrial, power transmission, pulley
Other characteristics
endless, high-performance, anti-static, oil-resistant, low-temperature-resistant

Description

V-belts DIN 2215 Description Material: Neoprene with polyester tensile cord. Note: Endless V-belt acc. to DIN 2215 (classic V-belt). Electrically conductive acc. to ISO 1813. The V-belts are of equal length (from 1000 mm). The V-belts have limited oil resistance. Avoid continuous contact with mineral oils and grease as these will reduce the service life. Temperature range: -55 °C to +70 °C. Service life is reduced if the V-belts are exposed to continuous temperatures above +60 °C. Assembly: The belts need to be tensioned after installation. Re-tensioning is required after an initial run time of 15 - 20 minutes. If, by a drive with several belts, one belt requires changing, then the full belt set should be replaced.
