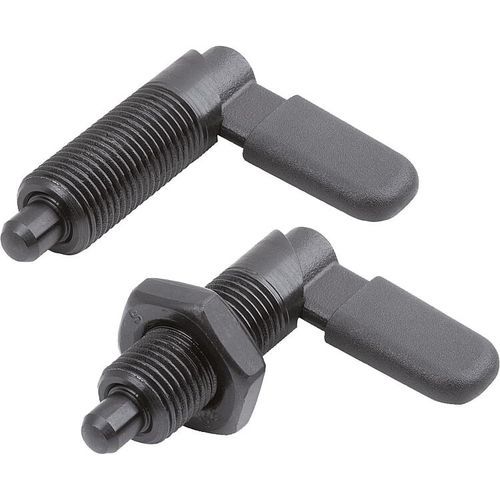

Lockable indexing plunger 03099-11 inch

Cam-action indexing plungers inch Product description: Cam-action indexing plunger are used where any change in locking position due to lateral forces should be prevented. Turning the grip through 180° retracts the indexing pin, enabling a change in the indexed position. The notch ensures that the grip remains in this position and the indexing pin remains retracted Material: Grip 1.0503. Threaded sleeve and indexing pin free-cutting steel. Spring 1.4310. Grip cap thermoplastic PA. Version: Threaded sleeve and grip black oxidised. Indexing pin hardened, ground and black oxidised. Spring bright. Grip cap: -black grey RAL 7021 Advantages: Turning the grip through 180° retracts the pin. Mounted via the male thread. On request: Special versions. Accessory: Mounting bracket 03099. Positioning bushes 03099-50, 03099-60, 03099-61. Drawing reference: Form C: with grip cap, without locknut Form D: with grip cap and locknut
