Manual clamping element 03165
machiningworkpiece

manual clamping element
manual clamping element
manual clamping element
manual clamping element
manual clamping element
manual clamping element
Add to favorites
Compare this product


Characteristics

Type
manual
Applications
machining, workpiece

Description

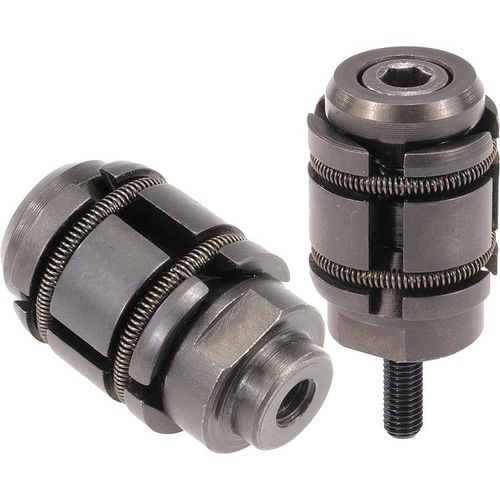

Centring clamps Material: Body steel. Bushes carbon steel. Version: Black oxidised. Note: These centring clamps allow workpieces to be centred on and clamped in a bore. The clamps have a wide expansion range. The series covers a bore range of Ø12 to Ø30 mm. To increase the centring accuracy the clamps with internal thread have a centring spigot (D2) for a locating hole. These are also suitable for M6 grid systems (see application example).
