Lockable indexing plunger 03099-20

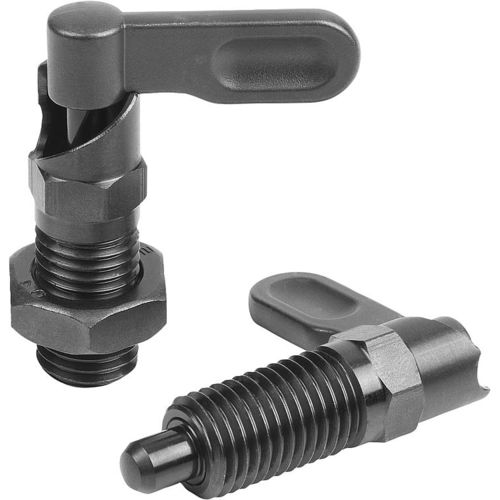

Description Material: Steel grade 5.8. Version: Black oxidised. Pin hardened and ground. Note: Cam-action indexing plungers are used when the indexing pin should not project all the time. Turning the handle through 180° retracts the pin. A notch ensures that the handle remains in this position. A stop prevents the handle being rotated through more than 180° ensuring that the pin remains retracted. Selecting which side the stop is on defines the rotation direction of the plunger. Drawing reference: Form A: grip uncoated without nut Form C: grip powder-coated without nut Form B: grip uncoated with nut Form D: grip powder-coated with nut 1) stop left 2) stop right
