Fixture key 03151

fixture key
fixture key
fixture key
fixture key
Add to favorites
Compare this product

Description

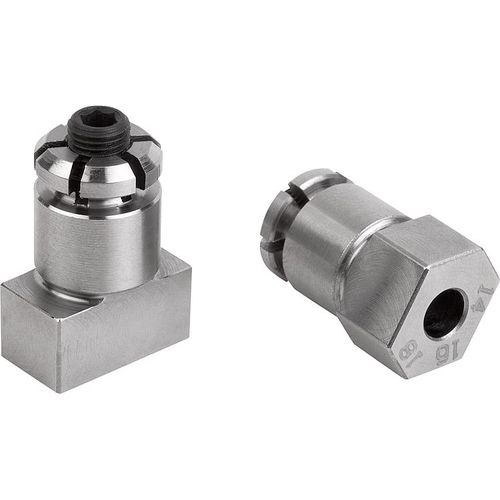

Locating pins expanding Material: Carbon steel. Version: Tempered and black oxidised. Locating diameter and guide faces ground. Note: These expanding locating pins enable e.g. tooling plates to be positioned in the T-slots of machine tables (see illustration). The plates to be positioned must have two holes matching the expanding pin diameter. The expansion screw has a broached through hexagonal hole allowing the pin to be tightened or loosened from two sides. Drawing reference: 1) tooling plate 2) clamp straps 3) machine table 4) expanding locating pin
