lockable indexing plunger
03089

Add to MyDirectIndustry favorites
Compare this product

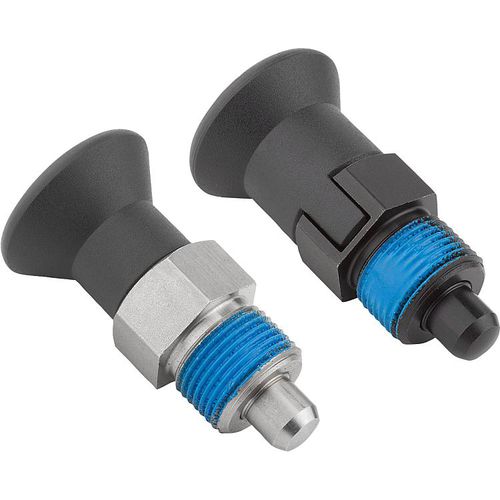

lockable indexing plunger lockable indexing plunger - 03089
{{requestButtons}}

Characteristics

  • Options:

    lockable

Description

Indexing plungers short version, with thread lock

Material:
Steel version:
thread and indexing pin free-cutting steel

Stainless steel version:
indexing pin not hardened:
threaded sleeve 1.4305
indexing pin 1.4305

Mushroom knob black grey thermoplastic.

Thread lock blue polyamide.
Version:
Steel version:
Indexing pin hardened, ground, black oxidised.

Stainless steel version:
Indexing pin not hardened, ground, bright.

Note:
Indexing plungers are used to prevent any change in locking position due to lateral forces. A new locking position can only be set after the pin has been manually disengaged. Form CP is recommended for applications where the plunger remains disengaged over a long period and the pin should be prevented from springing back.
The screw lock allows the plunger to be screwed in to the exact depth required, no spacer ring is required.
The screw lock is a spotted-on polyamide coating that grips the screw flank.

On request:
Special versions.

Accessory:
Spacer rings 03089
