spring plunger
03020

Add to MyDirectIndustry favorites
Compare this product

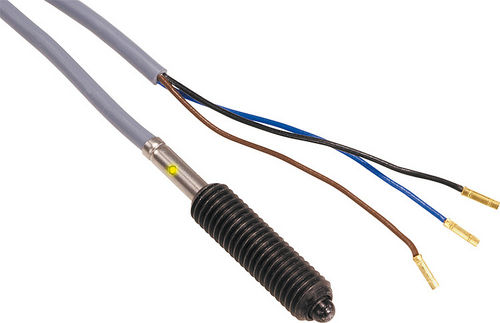

spring plunger spring plunger - 03020
{{requestButtons}}

Characteristics

  • Options:

    spring

Description

Spring plungers with end position feedback

Material:Sleeve, thrust pin and spring steel.
Inductive proximity switch.

Version:Black oxidised.
Thrust pin hardened.

Note:An electrical control signal can be sent via the built-in end switch.
Voltage: U = 10 – 30 V DC
Electricity: I max. = 200 mA
Temperature range: -25 °C – +70 °C
Protection class: IP 67

Safety:Spring plungers with end position feedback are not suitable for personal protection.

Drawing reference:
3) cable Ø 3.5 mm; length ca. 2 m
4) LED-indicator

BN = brown
BK = black
BU = blue
